Setting up the database archive depth

All events that Auto-Intellect receives from Traffic Detector are saved in the SQL database. The database may soon become of considerable size which increases the CPU load. To limit the database size, the events storage period can be set up for the database. This is called the archive depth.

To set up the archive depth, do the following:

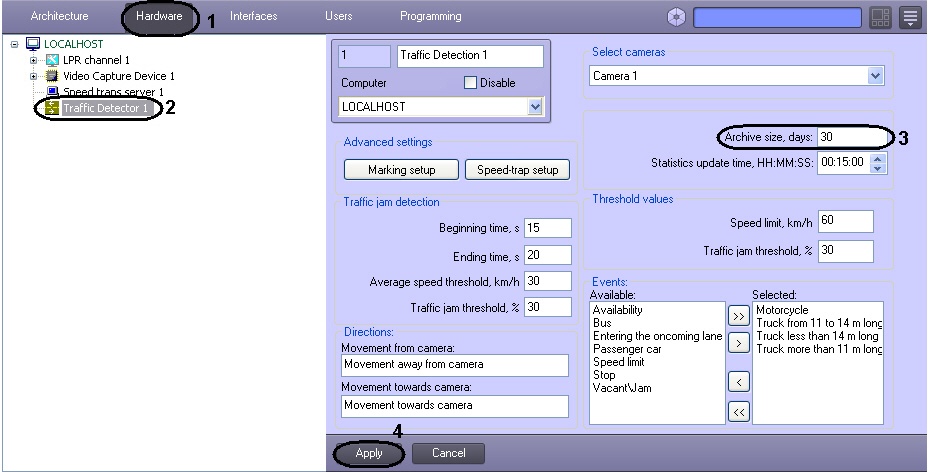

1. Open the Hardware tab in the System Settings window (1).
2. In the object tree on the left side of the Hardware tab, select the Traffic Detector object representing the Traffic Detector module to be set up. The settings panel of the selected object will open on the right side of the window (2).

3. In the Archive depth field, enter the number of days to store the events in the database (3).
4. Click Apply (4).

Archive depth is now set.
