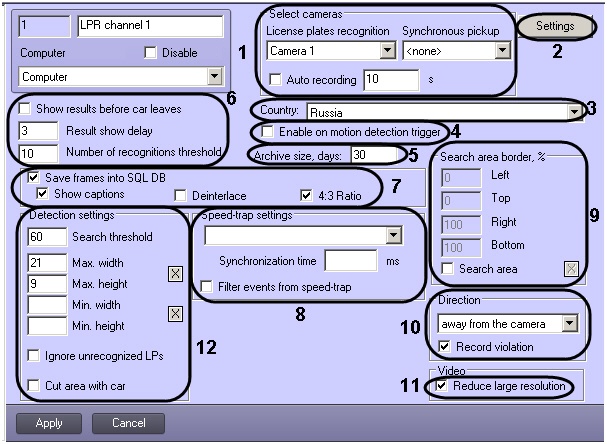

The figure shows the settings panel of the LPR channel interface object.
Attention!
If the Arena program module is used, LPR channel parent object does not have to be set up.
The following table shows the elements in the LPR channel settings panel.
№ | Parameter name | Field type | Description | Data type | Default value | Value range | |
|---|---|---|---|---|---|---|---|
Select camera group |
| ||||||
1
| License plates recognition | List | Main video camera for license plate recognition | List of available cameras | Camera 1 | Depending on the number of available Camera objects | |
Synchronous pickup | List | Additional video camera operating together with the main camera | List of available cameras | None | Depending on the number of available Camera objects | ||
Auto recording | Checkbox | Enabling the automatic recording of the recognized LP numbers | Boolean | No | Yes – automatic recording enabled, No – automatic recording disabled | ||
Auto recording length | Text field | Auto recording duration | Seconds | 10 | 0 - 1000 | ||
Without group |
| ||||||
2 | Settings | Click the button | Access to frame sign settings | - | - | - | |
3
| Country
| List
| For Auto-Uragan and VIT software modules |
| |||
Selection of emitter-country that issued the license plate | List of available LP templates | Russia | Depending on the number of available LP templates | ||||
For CARMEN-Parking modules |
| ||||||
Selection of the LP numbers recognition mode | List of available LP numbers recognition modes | Russia, Europe, Latin countires | Russia, Europe, Latin countires - for recognizing and identifying the plate's type, corresponding to Russia and all European countries. Mongolian characters - for recognizing and identifying the plate's type, corresponding to Mongolia. Thai characters - for recognizing and identifying the plate's type, corresponding to Thailand. Egypt - for recognizing and identifying the plate's type corresponding to Egypt South America - for recognizing and identifying the plate's type, corresponding to countries of South America, such as Uruguay, Brasil, Chilie, Argentina, Paraguay. Singapore – for recognizing and identifying the plate's type corresponding to Singapore. Philippines – for recognizing and identifying the plate's type corresponding to Philippines China - for recognizing and identifying the plate's type corresponding to China Iran (Persian characters) - for recognizing and identifying all Iran characters of the plates. Iraq - for recognizing and identifying the plate's type corresponding to Iraq Pakistan - for recognizing and identifying the plate's type corresponding to Pakistan Arabic characters - for recognizing and identifying the plate's type, corresponding to Arabic countries. USA - for recognizing and identifying the plate's type, corresponding to USA. Taiwan - for recognizing anf identifying the plate's type, corresponding to Taiwan. Guatemala - for recognizing and identifying the plate's type corresponding to Guatemala Morocco – for recognizing and identifying the plate's type, corresponding to Morocco | ||||
For CARMEN-Auto modules |
| ||||||
Selection of the LP numbers recognition mode | List of available LP numbers recognition modes | Arabic characters (7.2.8.16) | Arabic characters (7.2.8.16) - for recognizing and identifying the plate's type, corresponding to Arabic countries. China (7.2.7.79) - for recognizing and identifying the plate's type corresponding to China Guatemala (7.2.7.103) - for recognizing and identifying the plate's type corresponding to Guatemala Latin characters (7.2.8.24) - for recognizing and identifying the plate's type, corresponding to all European countries, including Russia. Mongolian characters (7.2.7.86) - for recognizing and identifying the plate's type, corresponding to Mongolia. Common characters (7.2.7.108) - for recognizing all the Latin characters of the plates (for example, relevant to such counties as Argentina, India, Africa and Singapore). The country recognition function is not used. Common characters – quick (7.2.7.62) - for recognizing all the Latin characters of the plates in a rapid mode (for example, relevant to such counties as Argentina, India, Africa and Singapore). This value is a rapid variant of Common characters (7.2.7.108), but it is more sensitive to the quality of the image. Recommended to use only in optimal conditions as the recognition rate may decrease with a bad quality of the image. Egypt (7.2.7.98) - for recognizing and identifying the plate's type corresponding to Egypt Korea (7.2.7.68) - for recognizing and identifying the plate's type, corresponding to Korea. Thai characters (7.2.7.92) - for recognizing and identifying the plate's type, corresponding to Thailand. Iran (Persian characters) (7.2.8.10) - for recognizing and identifying all Iran characters of the plates. Iraq (7.2.8.24) - for recognizing and identifying the plate's type corresponding to Iraq South America (7.2.7.116) - for recognizing and identifying the plate's type, corresponding to countries of South America, such as Uruguay, Brasil, Chilie, Argentina, Paraguay. USA (7.2.8.16 ) - for recognizing and identifying the plate's type, corresponding to USA. Singapore (7.2.7.116) – for recognizing and identifying the plate's type corresponding to Singapore. Taiwan (7.2.8.16) - for recognizing anf identifying the plate's type, corresponding to Taiwan. Morocco (7.2.7.111) – for recognizing and identifying the plate's type, corresponding to Morocco Pakistan (7.2.8.14) - for recognizing and identifying the plate's type corresponding to Pakistan Philippines (7.2.7.114) – for recognizing and identifying the plate's type corresponding to Philippines South Africa (7.2.8.24) - for recognizing and identifying the plate's type, corresponding to Republic of South Africa. | ||||
| For AxxonSoft modules | |||||||
| Selection of the LP numbers recognition mode | List of available LP numbers recognition modes | Russia | Russia - for recognizing and identifying the plate's type corresponding to Russia Spain - for recognizing and identifying the plate's type corresponding to Spain Columbia - for recognizing and identifying the plate's type corresponding to Columbia Poland - for recognizing and identifying the plate's type corresponding to Poland Argentina - for recognizing and identifying the plate's type corresponding to Argentina Germany - for recognizing and identifying the plate's type corresponding to Germany | ||||
4 | Enable on motion detection trigger | Checkbox | Starting auto recording on receiving an event from the motion detector | Boolean | No | For normal mode: Yes – if the camera is armed, the LPR channel scans all video images til the basic motion detection of the Intellect software is in the Alarm mode; If the camera is not armed, the LPR doesn't work, but manual start using scripts is available (see item 6 in the Scripts used in the Auto-Intellect software package section). Recognition will process frames untill the stop command will be done. No – the LRP channel scans video images permanently. For Parking mode: Yes –if the camera is armed, the LPR channel scans all video images, until the plate will be recognized, after it recognition stops even if the Alarm mode is still in process and procedure repeats when the new trigger of alarm is activated; if the camera is not armed, the LPR doesn't work, but manual start using scripts is available (see item 6 in the Scripts used in the Auto-Intellect software package section). Recognition will process frames untill the plate will be recognizied and then will stop before new manual start. No – the LRP channel scans video images permanently | |
5 | Archive size | Text field | Database archive depth | Days | 30 | 0 - 10000 | |
6
| Show results before car leaves | Checkbox | Enabling the results to be displayed before the car leaves the viewing zone | Boolean | Yes | Yes – the result is displayed before the car leaves | |
Results show delay | Text field | The time delay between the first recognition of the LP number and displaying the results | Seconds | 3 | 0 - 100 | ||
Number of recognitions threshold | Text field | The number of reliable recognitions to give the result | Number | 2 | 0 - 1000 | ||
7
| Save frames into SQL DB | Checkbox | Saving video frames of vehicle's recognized number into SQL DB | Logical type | No | Yes – the frame with a vehicle is saved into the database | |
Show titles | Checkbox | Enabling the LP number titles overlaid with the video image while making report about the recognized number | Logical type | No | Yes – titles overlay enabled | ||
Deinterlace | Checkbox | Enables deinterlacing of video frame with a vehicle when the image is received in full resolution | Logical type | No | Yes - deinterlacing of video frame with a vehicle is implemented | ||
4:3 Ratio | Checkbox | Set the ratio 4:3 of video frame's width and height while making report about the recognized number | Logical type | No | Yes – vide frame with a vehicle is displayed in ratio 4:3 | ||
Speed-trap settings group |
| ||||||
8
| Speed-trap setup | List | Selecting the speed-trap to work together with Uragan | List of available Speed-trap server objects | Not specified | Depending on the number of available Speed-trap server objects | |
Synchronization time | Text field | The time it takes the car to move from the point of speed detection to the viewing zone of the camera | Milliseconds | Not specified | 0 - 20000 | ||
Filter events from speed-trap | Checkbox | Enables saving the first speed detected only | Boolean | No | Yes – only the first detected speed value is used, others are ignored until the delay expires or the number is recognized | ||
Search area border, % group |
| ||||||
9
| Left | Text field | Left edge of the LP number search area | Percentage of the window width | 0 | 0 - 100 | |
Top | Text field | Top edge of the LP number search area | Percentage of the window width | 0 | 0 - 100 | ||
Right | Text field | Right edge of the LP number search area | Percentage of the window width | 100 | 0 - 100 | ||
Bottom | Text field | Bottom edge of the LP number search area | Percentage of the window width | 100 | 0 - 100 | ||
Search area | Checkbox | Enabling the use of the LP number search area boundaries | Boolean | No | Yes – the search area is enabled | ||
X | Button | Setting the search area using the mouse | - | - | - | ||
Direction group |
| ||||||
10
| Direction | List | Setting the traffic direction to detect the LP numbers | List of directions | Both directions | Any | |
Record violation | Checkbox | Enabling event generating in case of vehicle entering an oncoming lane | Boolean | Yes | Yes – in case if the direction of vehicle moving is not coincide with the specified in the Direction list, the Entered the oncoming lane alarm event will be created. | ||
Video group |
| ||||||
11 | Reduce large resolution | Checkbox | Frame handling setup | Boolean | Yes | Yes – the lesser frame is stretched, the bigger one is cut off | |
Detection settings group |
| ||||||
12
| Search threshold | Text field | Detecting zone sensitivity | Number | 20 | Unlimited (20 to 60 recommended) | |
Max. width | Text field | Maximally available width of license plate | Percentage of frame width | 21 | Unlimited | ||
Max. height | Text field | Maximally available height of license plate | Percentage of frame height | 9 | Unlimited | ||
Button X | Button | Traffic detector setup window opens | - | - | - | ||
Min. width | Text field | Minimally available width of license plate | Percentage of frame width | - | Unlimited | ||
Min. height | Text field | Minimally available height of license plate | Percentage of frame width | - | Unlimited | ||
Button X | Button | Access to the interactive interface of setting the area width and height | - | - | - | ||
Ignore unrecognized license plates | Checkbox | Setting up the detection of unrecognized numbers | Boolean | No | Yes – unrecognized numbers are ignored | ||
Cut frame with a car. | Checkbox | Set up the detection settings to the image with a car | Boolean | No | Yes- frame with a car is cut | ||
