The main parameters, forming the operation of LPR channel detector are the following:
The maximum sizes are not to be set more than required because it slows down the processing and does not improve the quality of recognizing.
Note.
These settings are set only with the use of Auto-Uragan program module. The Max. width is set with the use of VIT program module.

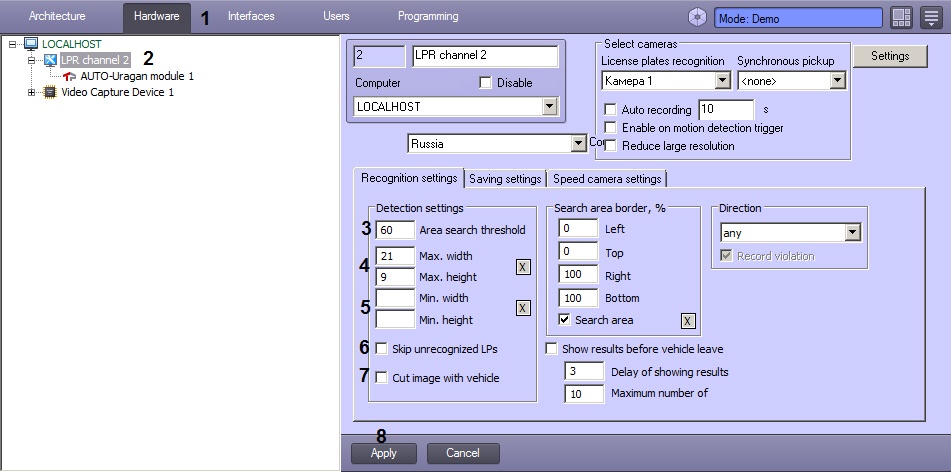

To set up the detector parameters, do the following:
Set the Max. width and Max. height parameters:

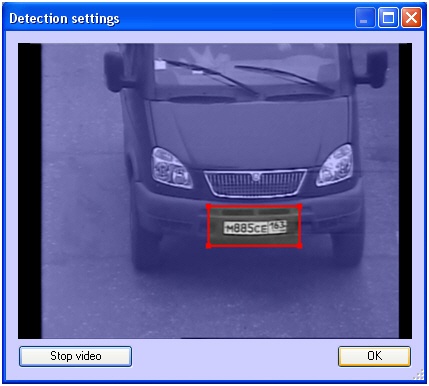

4.1 Click the X button next to the parameters. Interactive interface of setting up the zone parameters (4) showing the image from the corresponding camera will download.

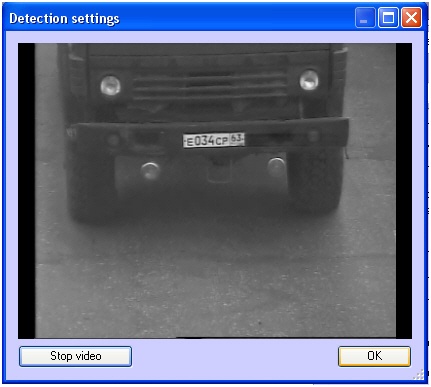

4.2 At the appropriate moment, click the Stop video button and then hold the mouse while dragging it across the required area and click OK button.
Note.
You can select the zone in the Real Time Video mode as well (see The Traffic Monitor setup procedure section).
Results of setting the parameters will be automatically entered in the Max. width and Max. height fields.
If necessary set the Ignore unrecognized LPs checkbox (6).
Note.
You can set unrecognized license plates ignoring when using CARMEN-Parking, CARMEN-Auto, ARH-Containers and VIT program modules.
If necessary set the Cut area with car checkbox (7).
Note.
Setting up the frame with a car cut is used only in case of working with megapixel video surveillance cameras.
Note.
Setting up the frame with a car cut is available also with the use of CARMEN-parking and VIT program modules.
The LPR channel settings are now completed.
