Introducing names to table's columns containing vehicle plates

There is a possibility to assign tables, containing plates and names to be displayed in the interface window Vehicle tracer, to the columns. Table's columns will be displayed in the window with search successful results of the identified number in the External Plates Database.

To assign names to table's columns, containing vehicle plates, it is necessary to do the following:

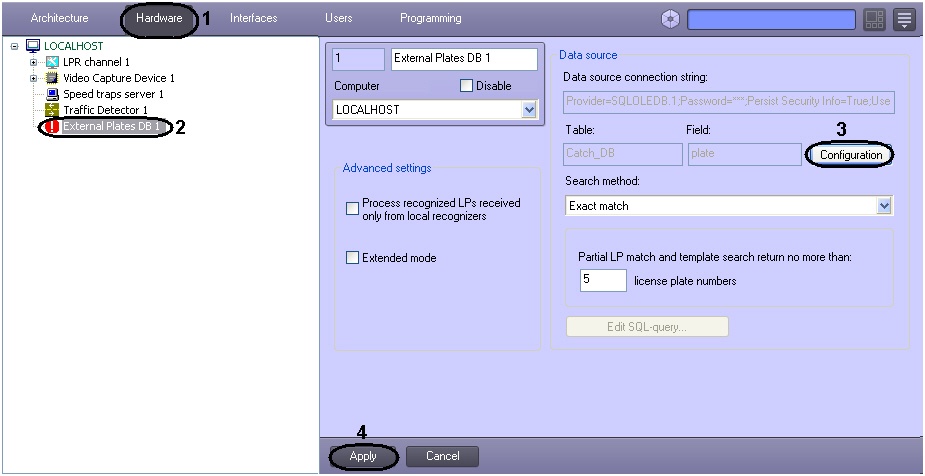

1. Go to Hardware tab of System settings dialog window (1).
2. Select the External Plates Database in the objects tree (2).

3. Press the Connection settings button (3).

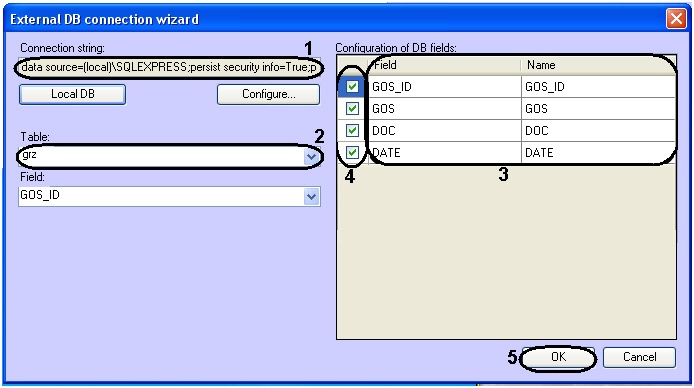

4. External DB connection wizard will be displayed in result.

5. Set the connection string to the External DB (1), then select from the table list the table, containing vehicle plates (2) (see steps 5-7 in the section External DB connection).
6. A list of columns in the selected table will be displayed in the DB fields settings table in result (3).
7. Enter the corresponding to column names that will be displayed in the Name column of the Vehicle Tracer interface window (3).
8. Select checkboxes opposite the lines fields of which should be displayed in the Vechicle Tracer interface window (4).

9. Click OK to save the applied changes and closing the dialog window External DB connection wizard (5).

   Note.

   Click Cancel to close the window External DB connection wizard without saving the changes.

10. Click Apply (4).

Assigning names to table's columns, containing vehicle plates is completed.
