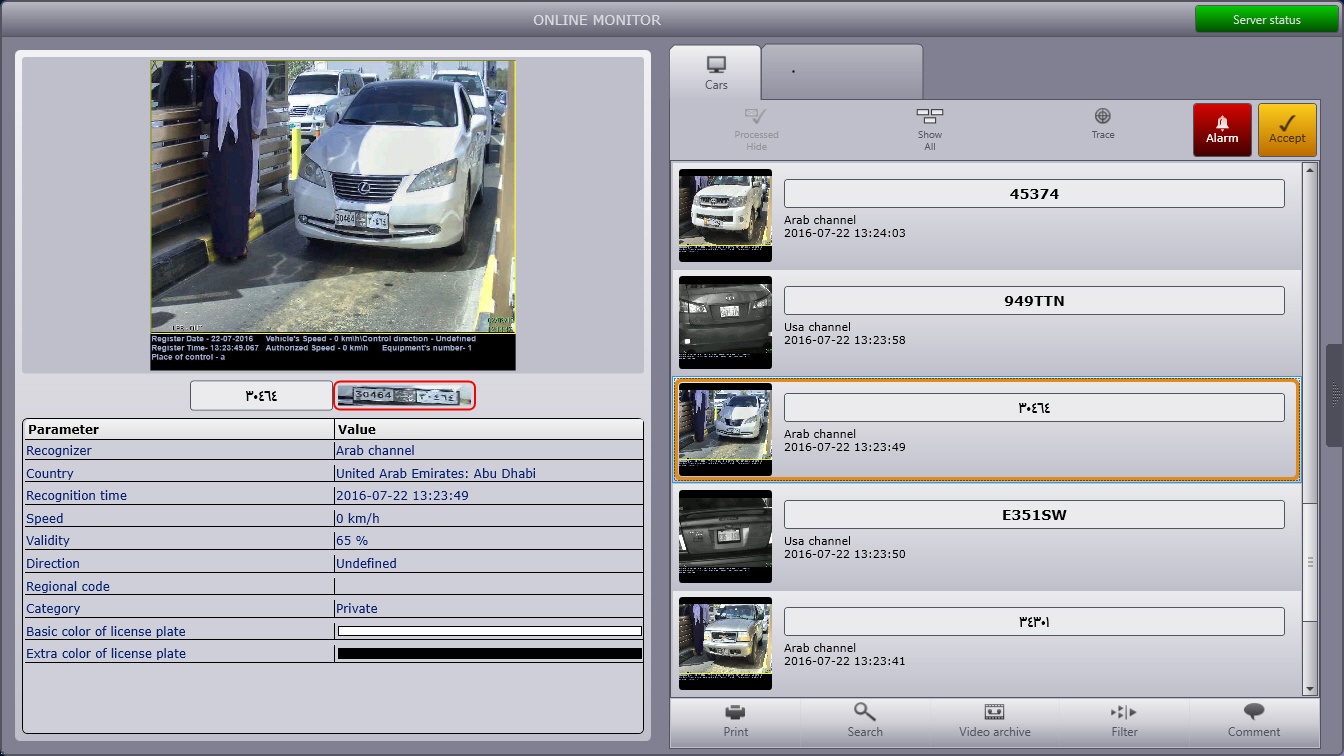

Viewing the data about the last identified vehicle is performed in the group Last event of On-line monitor window.

Note.

If there is selected an event in the identified vehicles protocol or in the alarms protocol, the data about this event will be displayed in the group Last event (see sections Viewing the protocol of the identified vehicles, Viewing the alarms protocol).

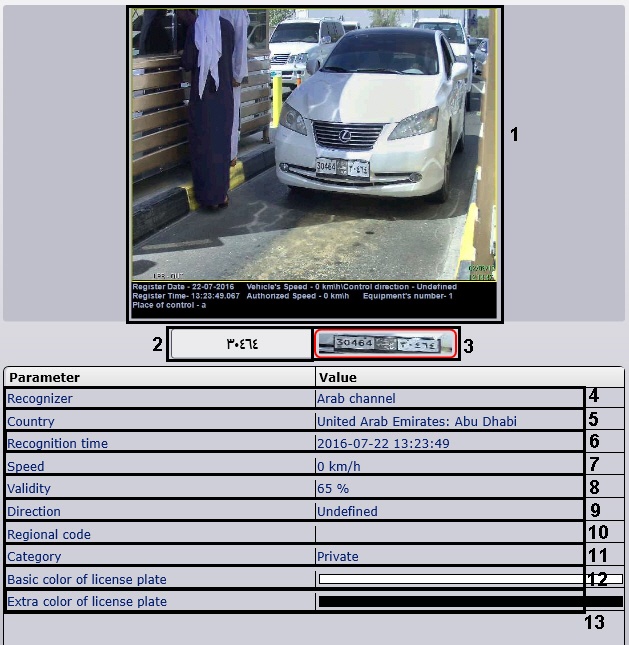

Viewing the data about the last identified vehicle is performed in the following way:

  1. In field 1 there is displayed a vehicle's video frame with a sign (1).

  2. Identified vehicle's plate is displayed in Field 2 (2).

    Note.

    If the plate hasn't been recognized, Unidentified message will be displayed in the field.

  3. Image of recognizing vehicle's plate is displayed in Field 3 (3).
  4. In the Recognizer field the name of plate's recognizer is displayed (the name of the corresponding object Arab channel) (4).

  5. In the Country string there is displayed a country in accordance with the identified number (5).

    Note.

    The country is displayed only in case when the Uragan or CARMEN-Auto modules are used for recognition.

  6. In the Recognition time string the date and recognition time of vehicle's information is displayed  (6).

  7. In the Speed string the vehicle's speed is displayed (7).

    Note.

    In case, if Uragan or CARMEN-Auto modules are used for identification and Radar module is not connected, zero speed value is displayed.

    Note.

    Depending on Vehicle Tracer settings the speed is displayed in km/h or m/h (see the document Auto-Intellect software package: Administrator's guide).

  8. In the Validity string validity of identified plate in percent is displayed  (8).
  9. In the Direction string the vehicle's direction (Towards the camera or Off the camera) is displayed  (9).
  10. Regional code of the recognizinf vehicle's plate is displayed in the Regional code field (10).

  11. In the Category field the vehicle's category is displayed (11).

    Note.

    In case the Hazard Identification Number Recognition Engine (ADR) is enabled for the Carmen-Auto module, the Category field will display the type of the cargo being transported.

  12.  Set the basic color of llicense plate in the Field 12 (12).
  13. Set the extra color of llicense plate in the Field 13 (13).

Viewing the data about the last identified vehicle is over.

Note.

In case if there is registered an alarm for a vehicle, the reason of alarm is also displayed in the group Last event.

Note.

In the same way one can view the data about any event, selected in the identified vehicles protocol or in the alarm protocol (see sections Viewing the protocol of identified vehicles, Viewing the alarms protocol).
