The Auto-Uragan, Carmen-Auto and VIT recognition modules enable estimating vehicle speed by video. The speed can be received in Auto-Intellect software to be shown as captions over the camera video image.

To configure speed estimation by video do the following:

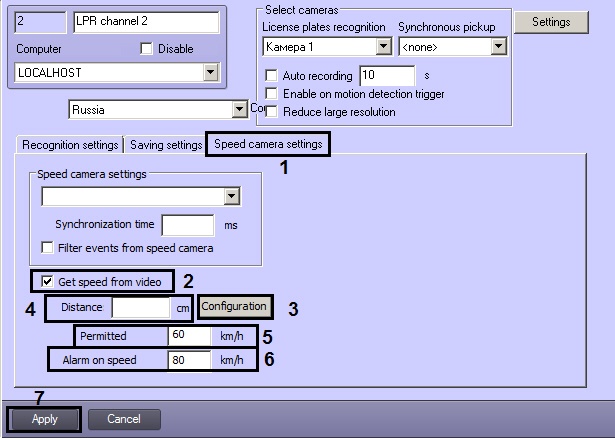

  1. Go to the LPR channel settings panel.
  2. Go to the Speed camera settings tab (1).
  3. Set the Get speed from video checkbox (2). As a result, settings for speed estimation become available.
  4. Set the scale:

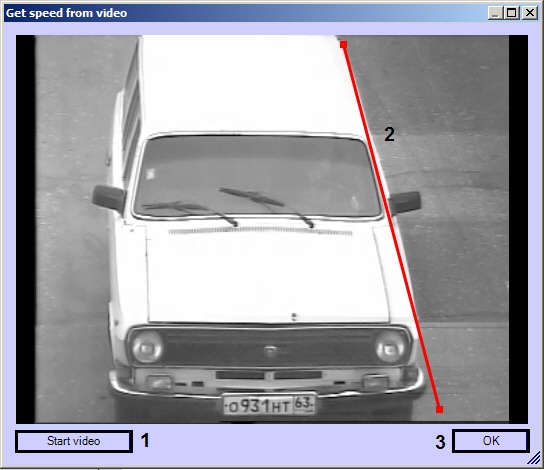

    1. Click Configuration (3). The Get speed from video dialog box opens.
    2. Click Stop video (1).
    3. Add a line segment of a known length to the video image (2).
    4. Click OK (3). The Get speed from video dialog box closes.
    5. In the Distance field, enter length of the line segment in centimeters (4).
  5. Enter permitted vehicle speed in the Permitted field (5).
  6. Enter maximum vehicle speed in the Alarm on speed field. If this speed is exceed, an alarm event is generated (6).
  7. Click Apply (7).

Configuring speed estimation by video is completed.
