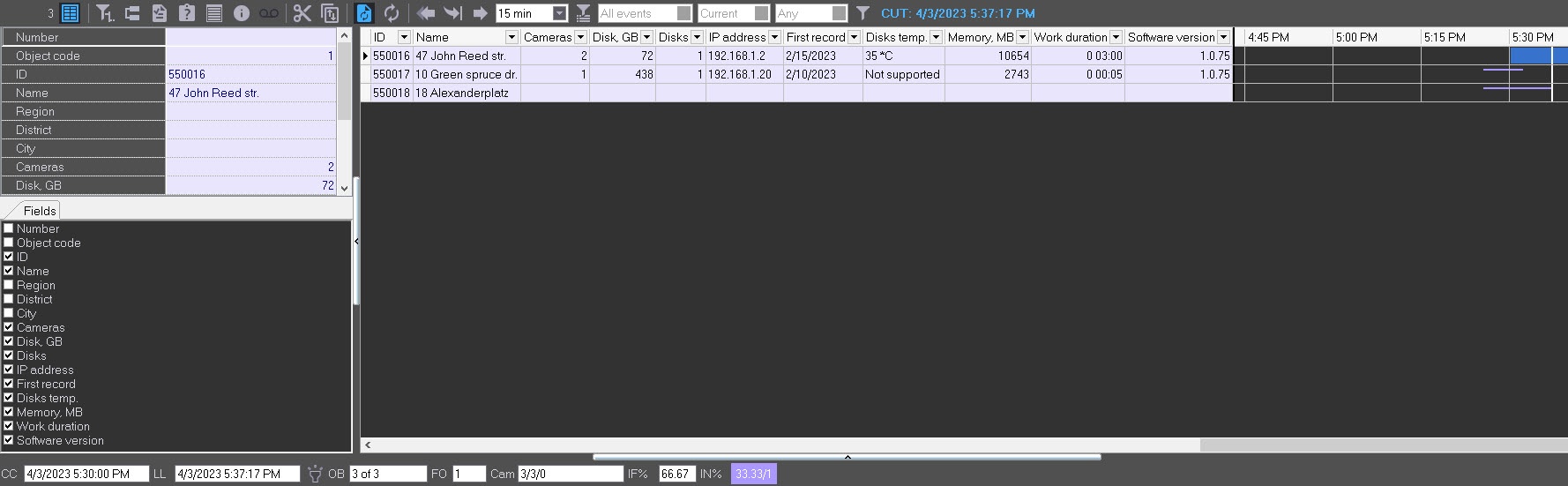

When you click the button (Show Inspector Ctrl+I), a special area appears. The upper part of this area contains short information about the selected object.

The lower part contains the Fields tab. The information on the selected parameters is displayed as columns in the main list of the log panel.

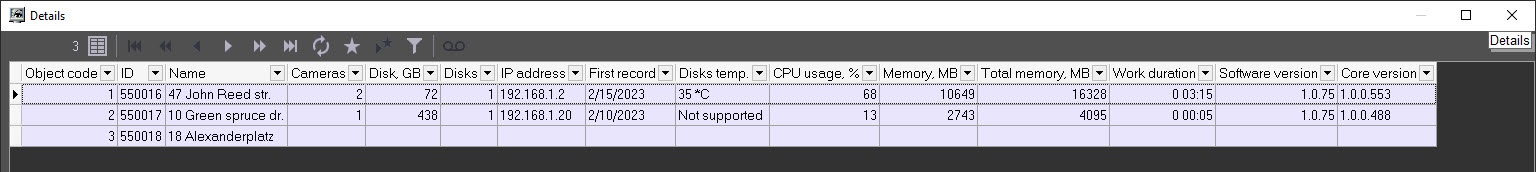

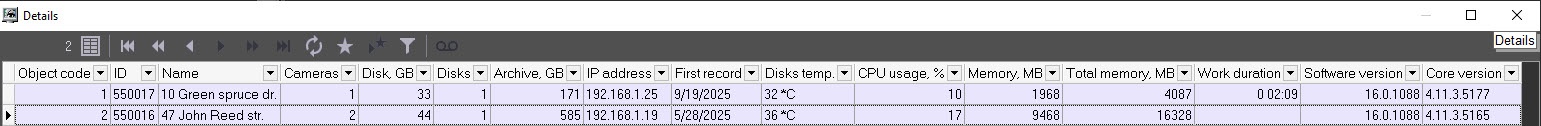

For detailed information about an object, select it in the log panel and click the button (Show details). The Details window opens.

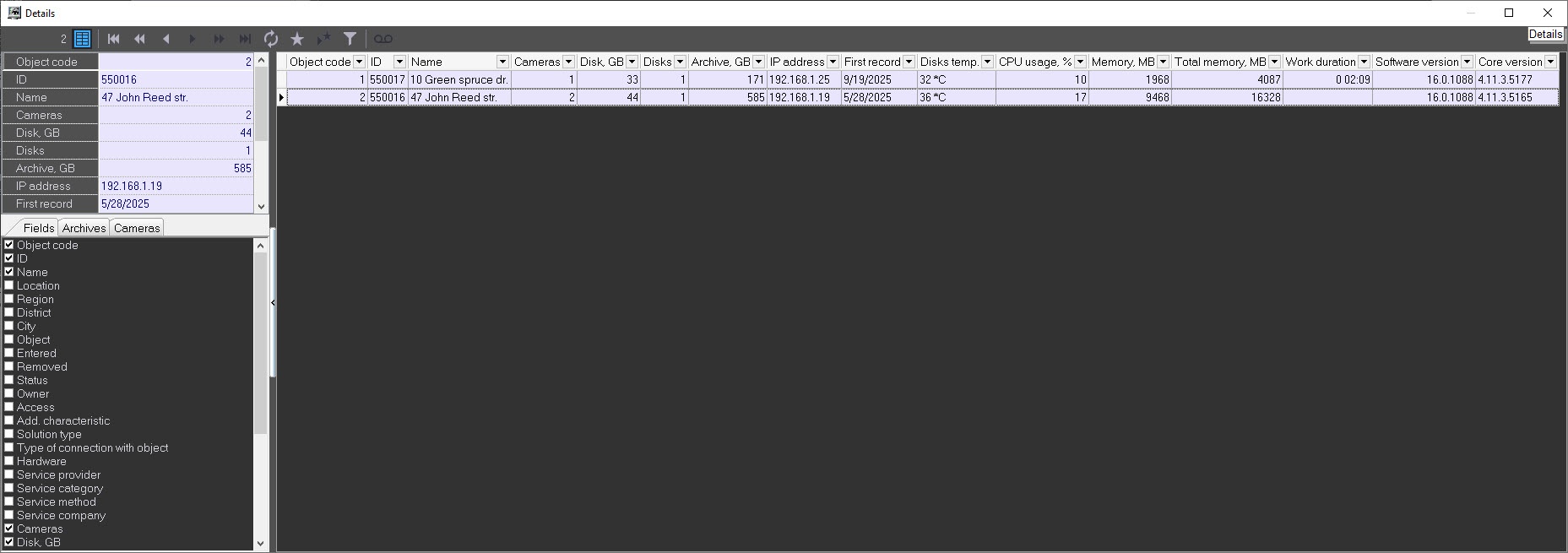

When you click the  button (Show Inspector Ctrl+I) in the Details window, a special area appears. The upper part of this area contains information about the selected object.

Note

When you use the owner panel, the Details window displays information about only those objects that belong to the owner selected in the owner panel. To view detailed information about all objects in the system, open this window from the owner panel—see Viewing details on alarms for all system objects.

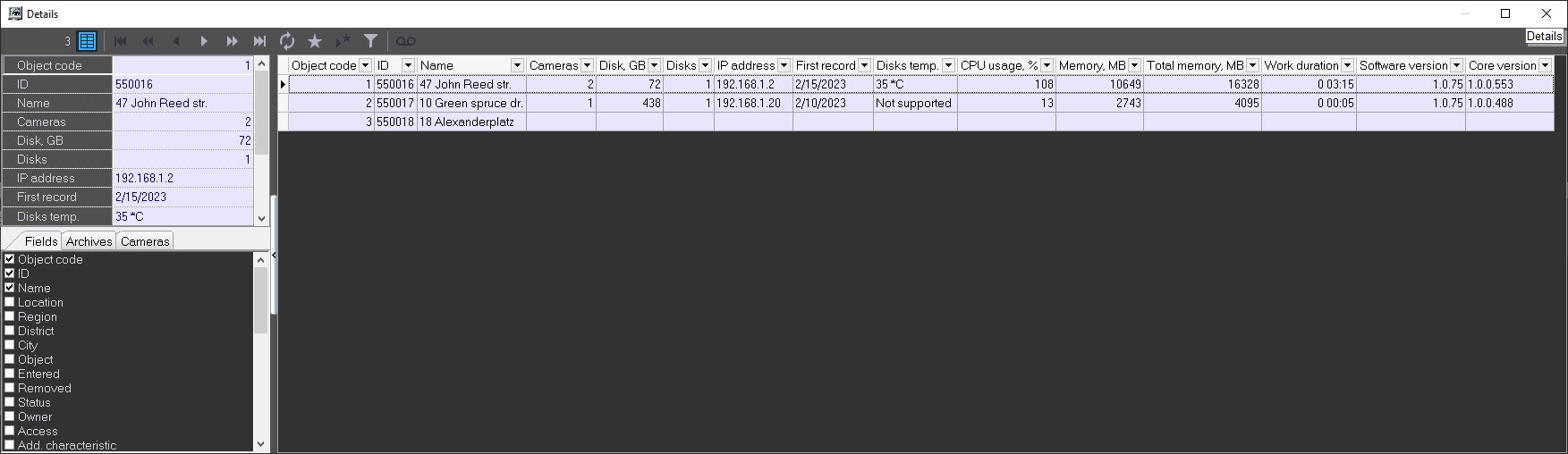

The lower part of the area contains three tabs: Fields, Archives, and Cameras. Information on the selected parameters is displayed as columns in the main list of the Details window.

The Archives and Cameras tabs.



The data in the Cameras, Disk, GB, Disks, Archive, GB, and Software version fields and in all fields in the Archives and Cameras tabs are filled in automatically when packets with technical information are received from the objects. If these fields are empty for an object, it means that the object has never connected yet.

The Cameras field displays the number of cameras for the object.

The Disk, GB field displays the total amount of free space in GB of all logical disks on which the video archive is recorded.

The Disks field displays the number of logical disks on which the video archive is recorded.

The Archive, GB field displays the total size in GB allocated for the archive.

The Software version field displays the version of the Agent of Control installed at the facility.

The fields in the Archives tab display the current depth of the video archive in days for each camera.

Note

For detailed information on the archives of the selected object, see Info on archives.

The fields in the Cameras tab display the current status of each camera (on/off).

The IP address field displays the IP address of the object.

The First record field displays the date of the very first entry in the video archive from all cameras.

The Disks temp. field displays the temperature of the hard disks separated by a comma if there are several disks.

The CPU usage,% field displays the CPU load as a percentage (updated every 15 minutes).

Note

Starting with Windows 8, the calculation of CPU load in the Task Manager has changed, so corresponding changes have also been made to the Agent of Control:

  • For Windows 8 and newer OS, the % Processor Utility counter is used for the CPU usage calculation.
  • For older operating systems, the % Processor Time counter is used.

The Memory, MB field displays the amount of available physical memory in MB.

The Work duration field displays the time of continuous operation of the psim.exe\psim64.exe process on the object in the format "d hh:mm",
where "d" is a day, "hh" is hours, and "mm" is minutes.

The Total memory, MB field displays the total size of physical memory in MB.

The Core version field displays the base Axxon PSIM version at the facility.

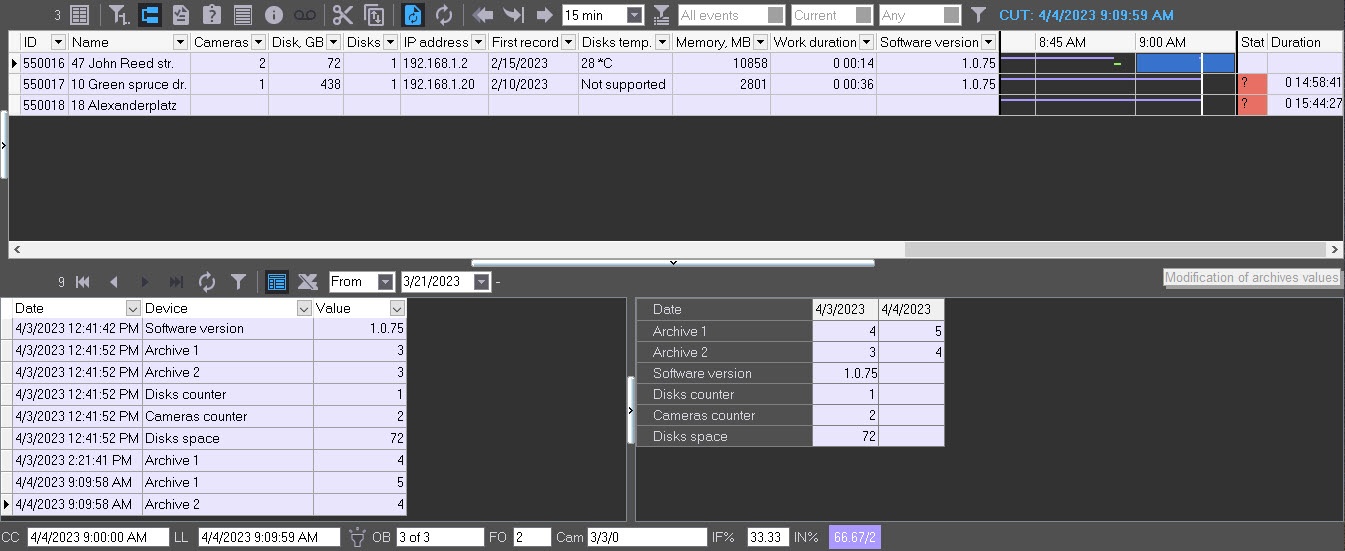

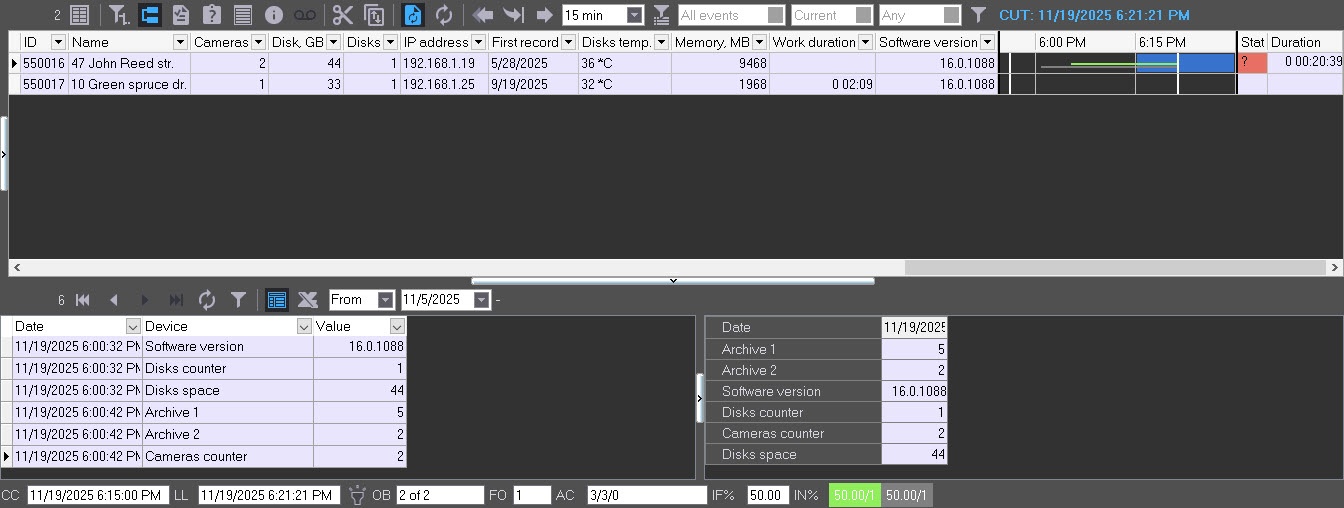

When you click the button (Show characteristics of devices), a special area appears. There you can see changes in the values of the fields described above (Cameras, Disk, GB, Disks, Archive, GB, Software version, and others).
