Vehicle LPs report

To create a report, click the Vehicle LPs button.

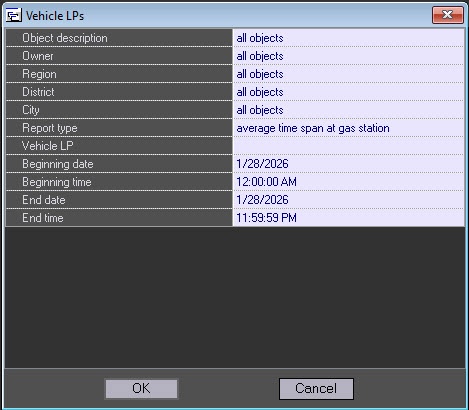

In the settings window that opens:

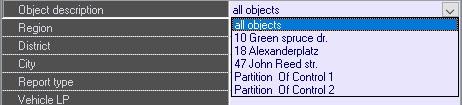

1. From the Object description drop-down list, select one of three modes of creating a report:
   1. Report on all the system objects.

   2. Report on one system object.
   3. Report on several system objects.

2. Select the required values from the Owner drop-down list. This information is set on the control settings panel (for more details, see the Editing regulatory and reference information page), as well as depends on the configured filter by owners in the Monitoring reports interface object (for more details, see Configuration of the Monitoring reports object). If you select a specific object (see step 1), then this parameter is hidden in the settings window.
3. From the Region, District, and City drop-down lists, select those regions, districts, and cities where the objects are placed. This information is set on the control settings panel (for more details, see the Editing regulatory and reference information page). If you select a specific object (see step 1), then this parameter is hidden in the settings window.
4. From the Report type drop-down list, select one of three available report types: average time span at gas station, number of vehicles, or list of LPs.

5. In the Vehicle LP field, specify the LP number of the vehicle that you want to include in a report. You can specify the LP number fully or use the mask that contains the following characters:
   • %—to replace the group of characters. For example, if you specify T4%, the report includes information on vehicles with LPs starting with T4;
   • _—to replace one character.


     Note

     The Vehicle LP field is auto-filled. Each LP number entered in this field is stored in the database and is automatically inserted into the field upon retyping.

6. Set the values of the Beginning date, Beginning time, End date, and End time fields to specify the time interval by which a report is created.
7. Click the OK button.
   As a result, a vehicle LP report is created.

The example of a report on the average time span at a gas station:

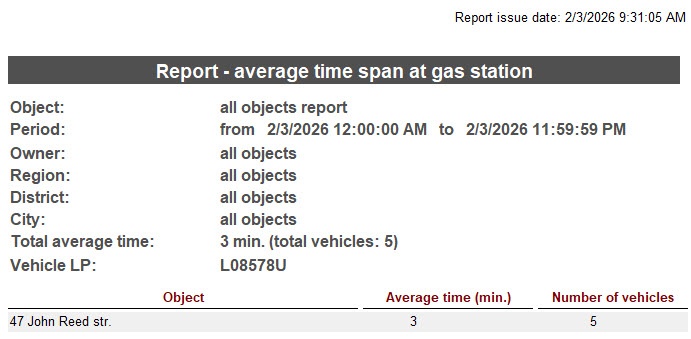

The example of a report on the average time span at a gas station for a vehicle with the L08578U license plate:

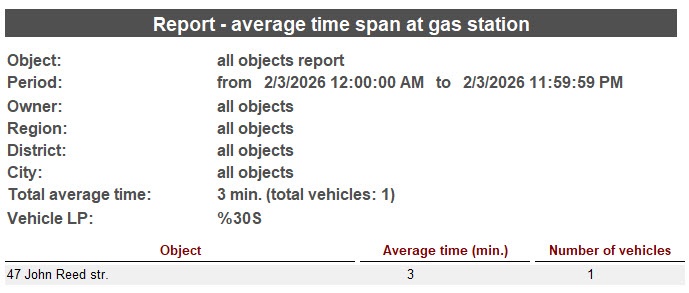

The example of a report on the average time span at a gas station for vehicles whose license plates end at 30:

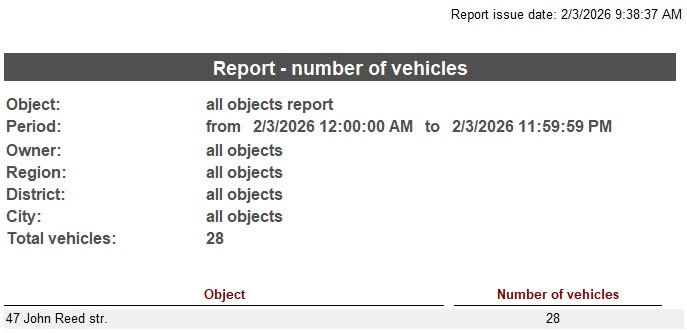

The example of a report on the vehicle number:

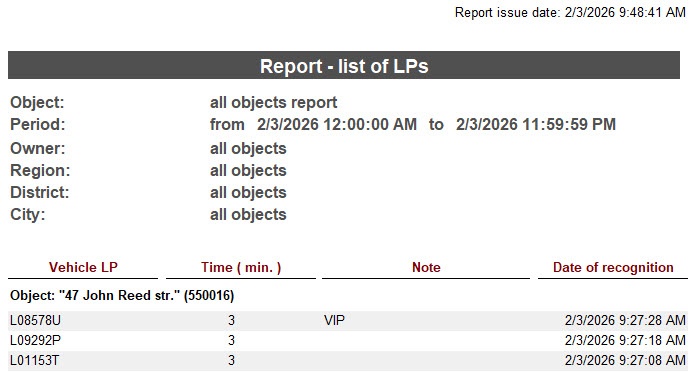

The example of a report on the LP's list:

The Note column is filled only for those vehicle LPs that are inserted in the external plates database.

Note includes:

1. The name of the external database (mandatory value)—VIP in the example.



Creating a report on vehicles' LPs is complete.
