To configure the Signal and Noise detection tools, you must perform the following steps:

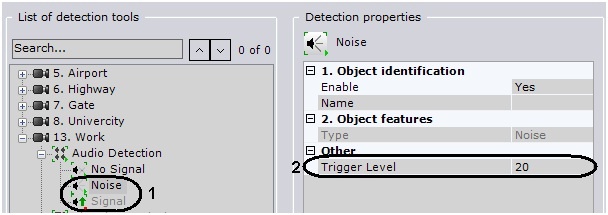

  1. In the Detection Tools list, highlight a Signal or Noise audio detection.
  2. Enter the following values in the Level field:
    1. When configuring the Signal detection tool, enter the audio signal level in standard units above which the detection tool will be triggered. You should select a value empirically in the range [0, 1000].
    2. When configuring the Noise detection tool, enter the noise level in standard units above which the detection tool will be triggered. You should select a value empirically in the range [0, 1000].
  3. Click the Apply button.

Configuration of the Signal and Noise detection tools is now complete.
