Documentation for Axxon Next 3.0.1. Documentation for other versions of Axxon Next is [available too].

Playback control in Time Compressor mode is managed using the advanced navigation panel and the playback panel (buttons for jumping to the previous/next frame/fragment are not available in this mode).

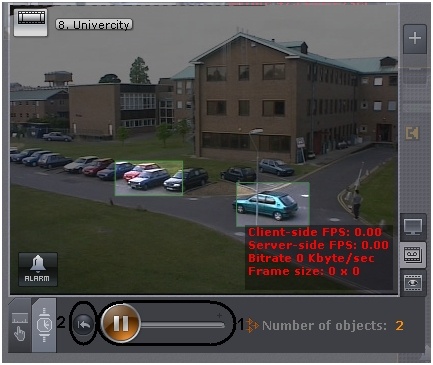

To set the desired number of tracked objects to be simultaneously displayed, set the slider in the appropriate position (1). The extreme left position of the slider corresponds to two objects, and the extreme right position corresponds to six objects.

Note

This setting is useful only when there are not a large number of objects constantly moving in the video camera's field of view.

Note

Once you have configured this setting, playback begins at the beginning of the selected interval.



To stop or start playback, use the  and  buttons on the playback panel or the identical buttons on the advanced navigation panel.

To start archive playback in Time Compressor mode starting at the beginning of the selected interval, click the  button (2).
