Documentation for Axxon Next 3.0.1. Documentation for other versions of Axxon Next is [available too].

Note

Use of the timeline is described in detail in the section The Timeline.

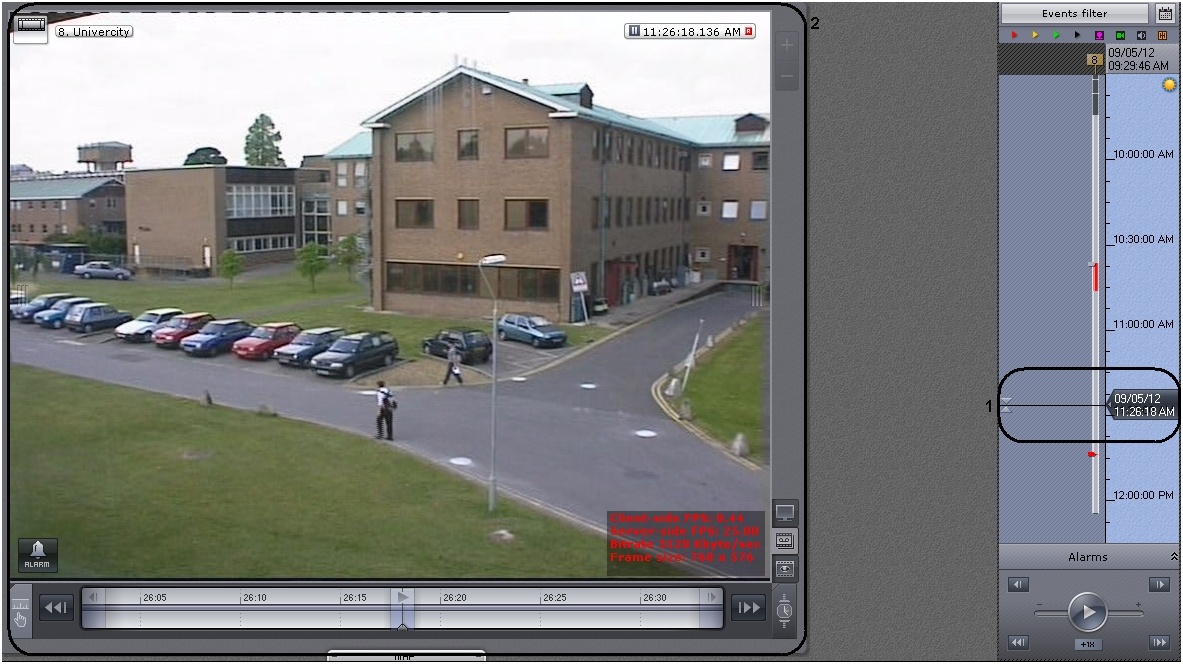

You can select recordings in the archive for playback in the viewing tile by using the timeline. To do this, left-click the indicator (1) and drag it to the corresponding position on the timeline. Alternatively, you can left-click the left portion of the timeline.

Note

The position on the timeline is a graphical representation of a specific moment in time.

The frame corresponding to the selected position (moment in time) will then be displayed in the viewing tile (2).

If there is no recording in the selected position, the indicator will automatically move to the position corresponding to the nearest recording.

To play back the selected recording, use the playback panel (see the section titled Navigating Using the Playback Panel).
