Documentation for Axxon Next 3.0.1. Documentation for other versions of Axxon Next is [available too].

You can use the advanced navigation panel to select recordings in the archive for playback in the viewing tile. To do this, complete one of the following two actions:

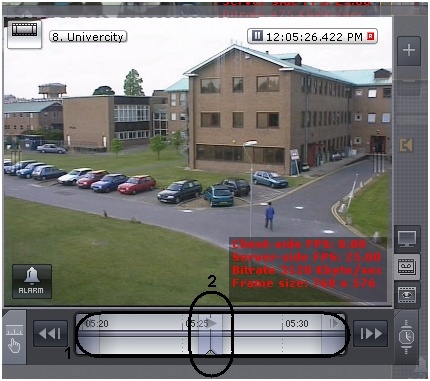

  1. Left-click the timeline (1) and hold down the button while dragging the scale to the desired position.
  2. Left-click the desired moment in time on the timeline.



When the timeline scale is repositioned, the recording will play in fast motion from the current time to the selected moment.

Note

The current moment in time is determined by the cursor located in the center of the timeline (2). The position of the cursor relative to the timeline never changes.

Once the selected moment is reached, playback stops. The speed of playback depends on the speed of the timeline’s movement.

To start archive playback click   in the middle of the timeline. To pause playback click the timeline.

You can also use the slider on the timeline to play back video footage. To flip through recordings this way you should:

  1. Click and hold down the left mouse button on the timeline.
  2. Move the slider to the right to fast forward video and to the left to rewind it.
  3. As you move the slider, release the mouse button.

 The speed of playback depends on how quickly you flip through the timeline.

To control playback, use the playback panel (see the section titled  Navigating Using the Playback Panel) or the advanced navigation panel:

  1.  Go to the preceding frame .
  2. Go to the next frame .
  3. Go to the previous recording .
  4. Go to the next recording .
