The Axxon Next client can be started manually using the Start menu, which is intended for launching user programs in Windows. To start working with the software, perform the following steps:

  1. Select Start -> All Programs -> Axxon Next -> Axxon Next

    Note

    The Axxon Next software package program file AxxonNext.exe is located in the folder <Axxon Next installation folder>\Axxon Next\bin\

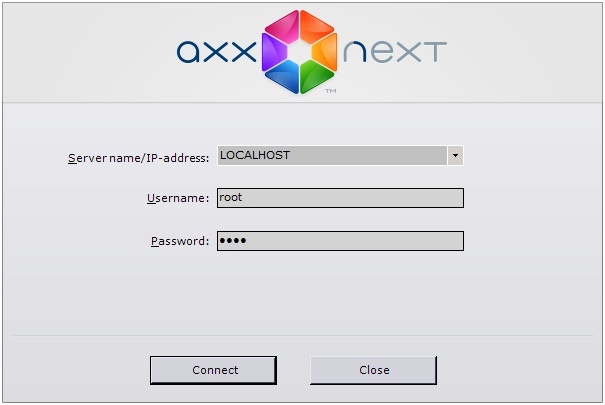

    The Axxon Next client will then launch and an authorization window will appear

  2. Enter the user name and password and click Connect.

Note

If the software is accessed by a remote user, the NetBIOS name or IP address of the computer with which the connection is established should be indicated in the Computer field

Note

The first login to the system is done with the user root, which has administrator permissions . Enter root in the User Name and Password fields. The administrator then needs to configure the system for multi-user access described in detail in the section titled Creating and Configuring the Role and User System Objects)

Attention!

If a remote user is accessing a Server, the version of the Server and the version of the user's Client must be the same. The installed versions of the Drivers Pack must be the same as well.

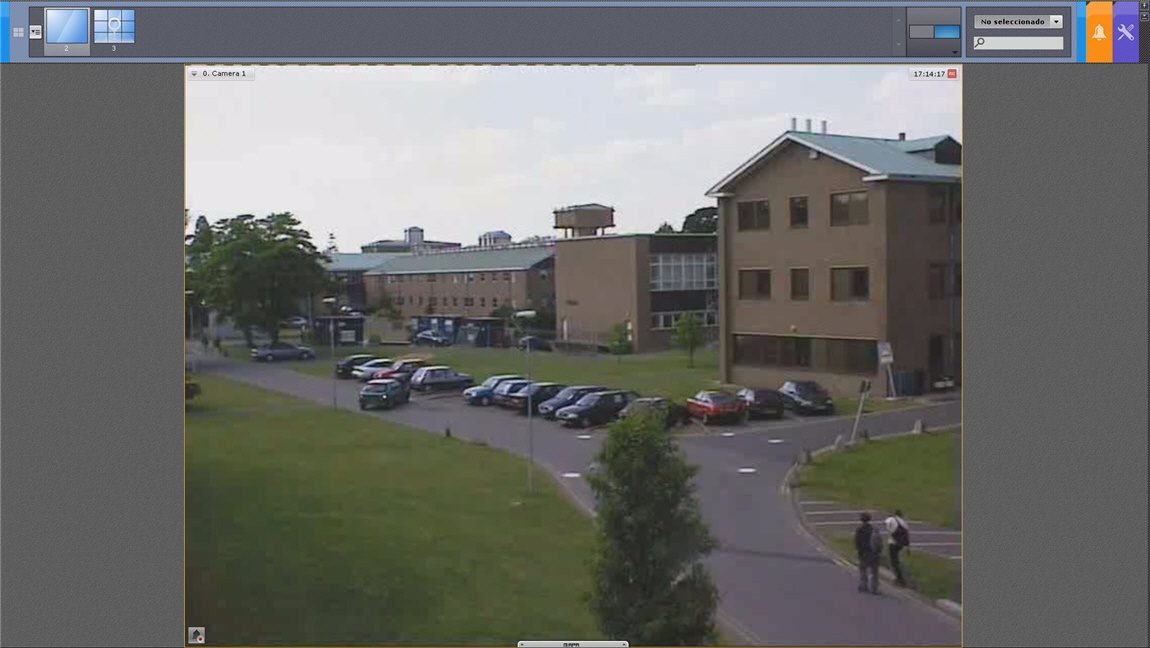

If authorization is successful, a video surveillance monitor will be displayed on the screen.

Note

If Axxon Next is launched in demo mode, then after you enter the authorization parameters, a message to this effect will appear (see the section Demo mode notification)

If the Server to which Axxon Next is connecting does not belong to any Axxon Domain, after the Connect button in the authorization window is clicked, a message is displayed.

To connect to the Server, you must either create a new Axxon Domain based on the server or add the Server to an existing Axxon Domain.
If you choose the first option, click OK in the message and follow the instructions given in the section Creating a new domain. For the second option, click the button and follow the instructions given in the section Adding a Server to an existing Axxon Domain.
