Documentation for Axxon Next 3.5.1. Documentation for other versions of Axxon Next is [available too].

Autohide entails hiding the top panel in the Layouts and Alarms tabs if there is no input from the keyboard or mouse.

Important!

Autohide is not performed if the  button in the upper right-hand corner is not activated. When the button is pressed, it looks like this:

When input from the keyboard or mouse begins, the top panel is displayed in shrunken form, and when the mouse is rolled over it, it is displayed in expanded form.

Auto hide is enabled by default.

To turn off auto hide for panels, perform the following:

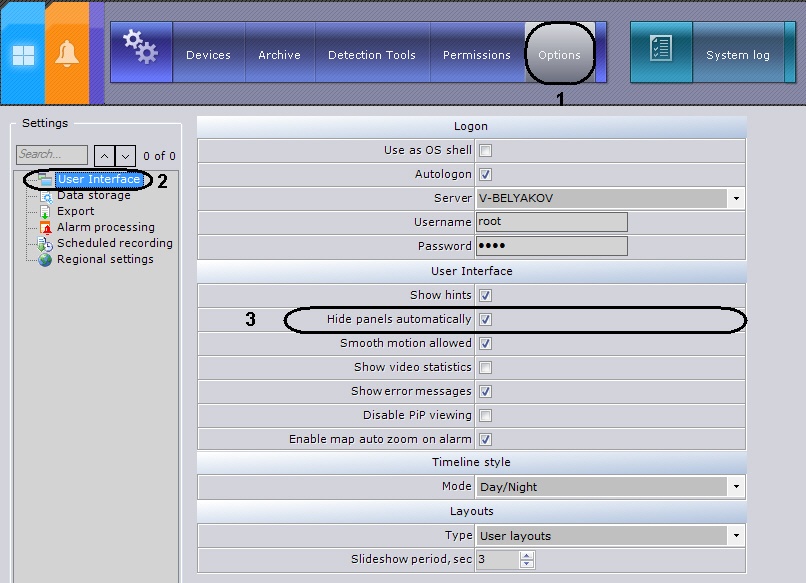

  1. Go to Settings → Options → User interface (1–2).
  2. Clear the check box for hiding ribbons automatically (3).
  3. Click Apply to save the changes.

Automatic hiding of panels will now be disabled.
