You can link information boards with viewing tiles.

Links are set by placing items in neighboring cells. A single information board can be linked with multiple cameras. Boards cannot be linked with each other, nor can viewing tiles be linked with each other.

Linking information boards to viewing tiles, in addition to graphical changes (shared background), results in other changes:

  1. The size of the linked viewing tiles is increased/decreased in a different way (see Scaling the Viewing Tile).
  2. You can view recorded video for a camera by clicking an event on the Events Board (see Switching a camera linked to an Events Board to the archives).

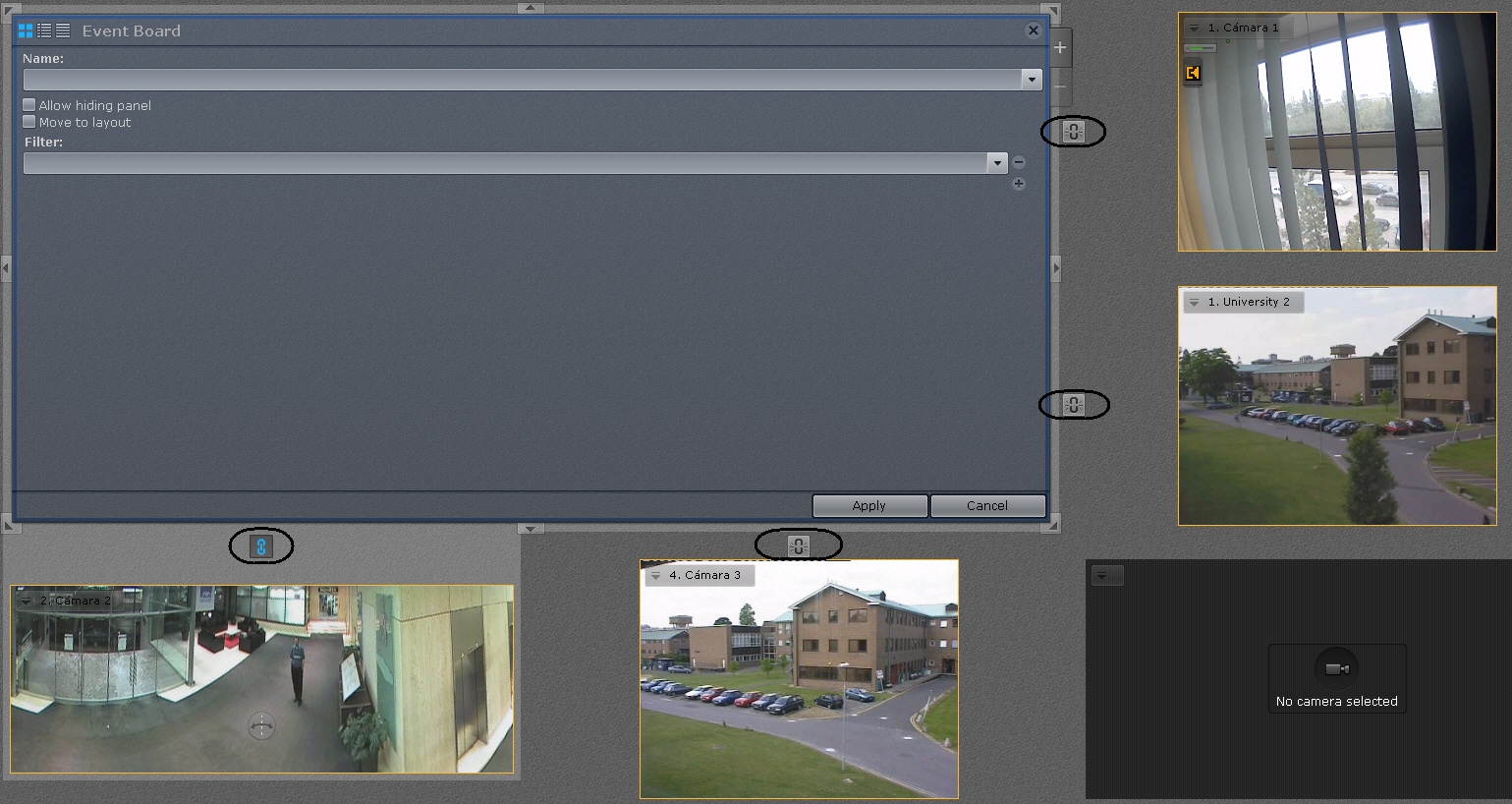

To create a link, select an information board or a viewing tile that neighbors at least one cell containing an information board. Click the  button on the edge of the cell.

To remove a link, on the edge of the linked cells, click the  button.
