Statistics Boards display information on the number of events of the selected type or types, as a number and graph.

To configure a Statistics Board:

  1. Add an information board to the layout (see Adding information boards to cells).

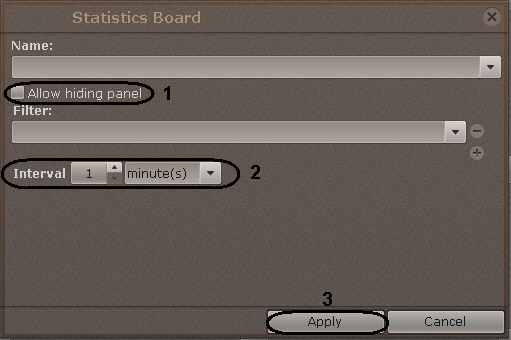

  2. Click anywhere on the information board to enter configuration mode.
  3. To allow operators to hide the information board from a layout, select the Allow hiding panel check box (1).
  4. Select the event types that you want to be counted:
    1. Click the  button to add a new event type.

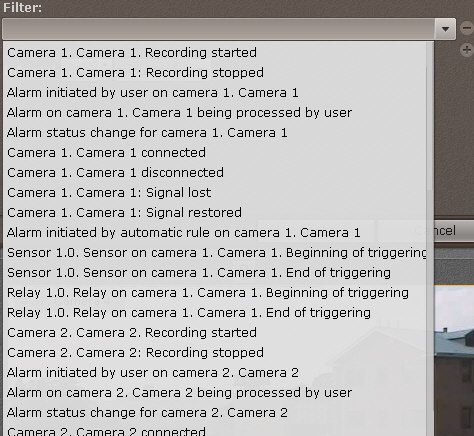

    2. Select the necessary type of event in the list.

    3. Repeat the first two steps to add all necessary event types.

      Note

      To remove an added event type, click the  button.

      If no event type is selected, all system events are counted.

  5. Select the time period for display of statistics on the graph (2).
  6. Click Apply to save the changes (3).

Configuration of the Statistics Board is complete.
