Documentation for Axxon Next 3.5.1. Documentation for other versions of Axxon Next is [available too].

In Live Video mode, comments can be added only if the video is "frozen" (see Using the Snapshot function) and the video camera is linked to an archive.

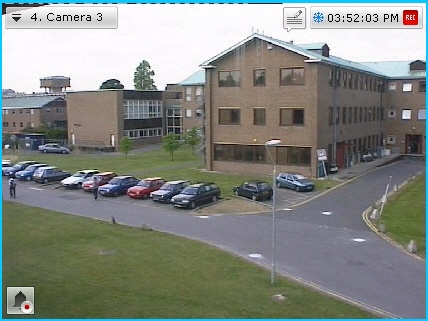

If these conditions are met, the upper-right corner of the viewing tile displays a time indicator and adjacent to it an  button, which is used to add comments.

Note

If the video camera is linked to an archive but recording is not currently underway, when the video is "frozen" recording to the archive is turned on for 10 seconds.

In Archive and Archive Analysis modes, comments can be added both for specific frames and for intervals of time.

To add a comment for an interval, select an interval on the timeline, place the timeline indicator either inside the interval or at one border of it, and click the  button.

Note

If comments are added during playback in Archive or Archive Analysis mode, playback is paused after the  button is clicked.

In Alarm Management mode, operators can be required to give comments after classifying an event (see Configuring Alarm Management Mode) or comments can be left in free form, before event classification, by clicking the  button. The comment applies to the entire duration of the alarm.
