Configuring the visitors counter

To configure the visitors counter:

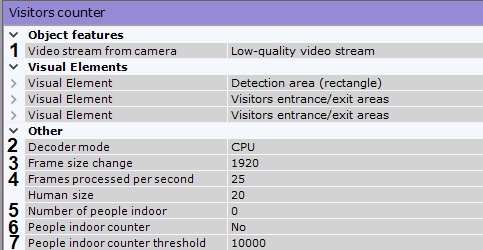

1. If the camera supports multistreaming, select the stream to be used for detection. Select a low-quality video stream to reduce Server load (1).

2. Select a processing resource for decoding video streams (2). When you select a GPU, a stand-alone graphics card takes priority (when decoding with NVidia NVDEC chips). If there's no appropriate GPU, the decoding will use the Intel Quick Sync Video technology. Otherwise, CPU resources will be used for decoding.

3. By default, the frame is compressed to 1920 pixels on the longer side. To avoid detection errors on streams with a higher resolution, it is recommended that compression be reduced (3).

4. Set the frame rate value for the detection tool to process (4). This value should be in the range [0.016, 100].

5. By default, the detection tool outputs the Camera. Visitor access in the direction of "Entrance" and Camera. Visitor access in the direction of "Exit" events. If total footfall and visitor number control / exceeding notification is required, do the following:

   1. Select Yes for the People indoor counter parameter (6).

   2. Enter the current number of visitors within the area (5).

   3. Set the threshold value for the visitor counter; exceeding this limit will generate the corresponding event (7).

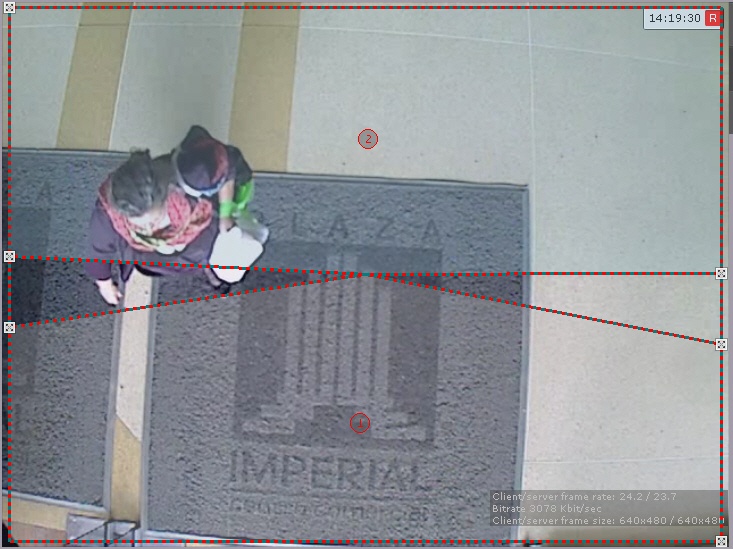

6. In the Preview window, set the detection area. It is divided to two sectors, #1 and #2. When an object moves from #2 to #1, the system treats it as entry; alternatively, #1 to #2 is treated as exit.
   To configure the sectors, you can drag them by corners  or sides.



   To swap sectors, just click inside one of them.

   Note

   To show / hide sectors in the Preview window, click the button.

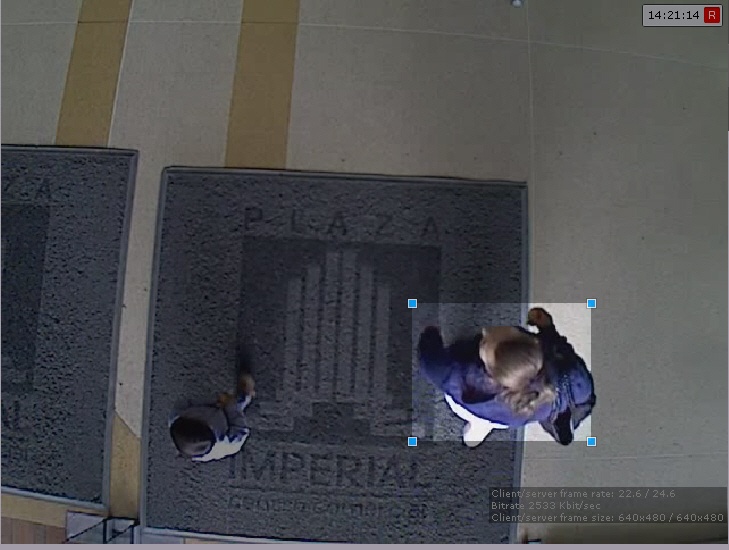

7. Click  and specify the approximate size of a human. You can do so by dragging the corners of the rectangular area.

8. Click Apply.

Configuration of the visitors counter is now complete.
