Traffic statistics by vehicles groups

The Traffic statistics by vehicles groups report allows getting statistical data for each specified group of vehicles. Vehicles group is a set of several vehicles types.

To create the Traffic statistics by vehicles groups report, do the following:

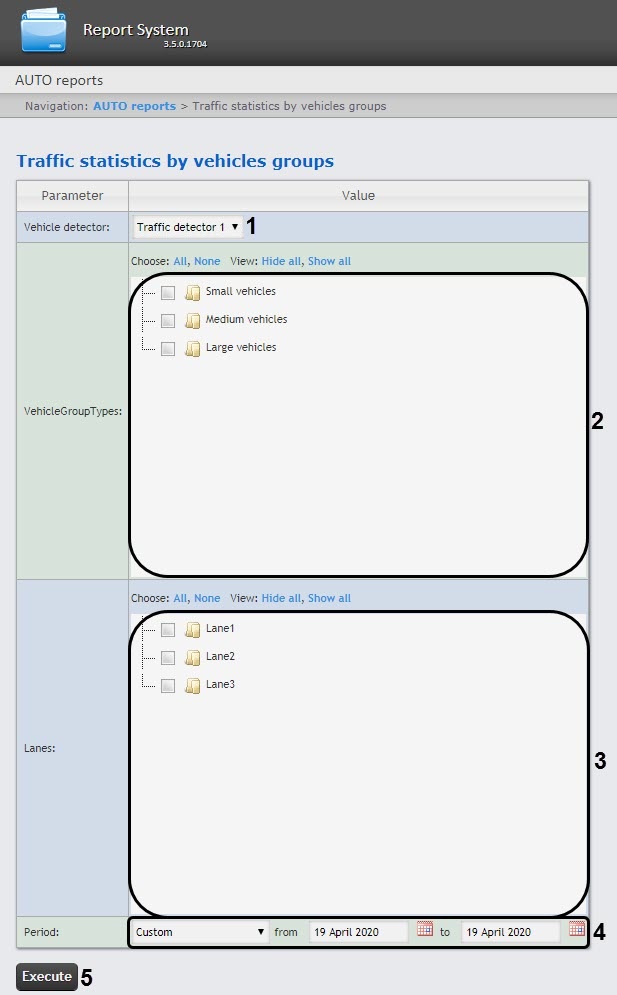

1. Select the Traffic statistics by vehicles groups report type (see Selecting the type of Auto report). As a result the dialog box for specifying the report parameters will be displayed.


2. From the Vehicle detector drop-down list (1), select the Traffic detector object, which data should be used in the report .

3. In the VehicleGroupTypes list (2), set the checkboxes next to those vehicle groups, which data should be included in the report.

4. In the Lanes list (3), set the checkboxes next to those lanes, which data should be included in the report.

5. In the Period drop-down list (4), select the time period for which the report is to be created.

   Note

   If the User defined period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields using the Calendar tool. Click the  button next to the corresponding field to use the Calendar tool.

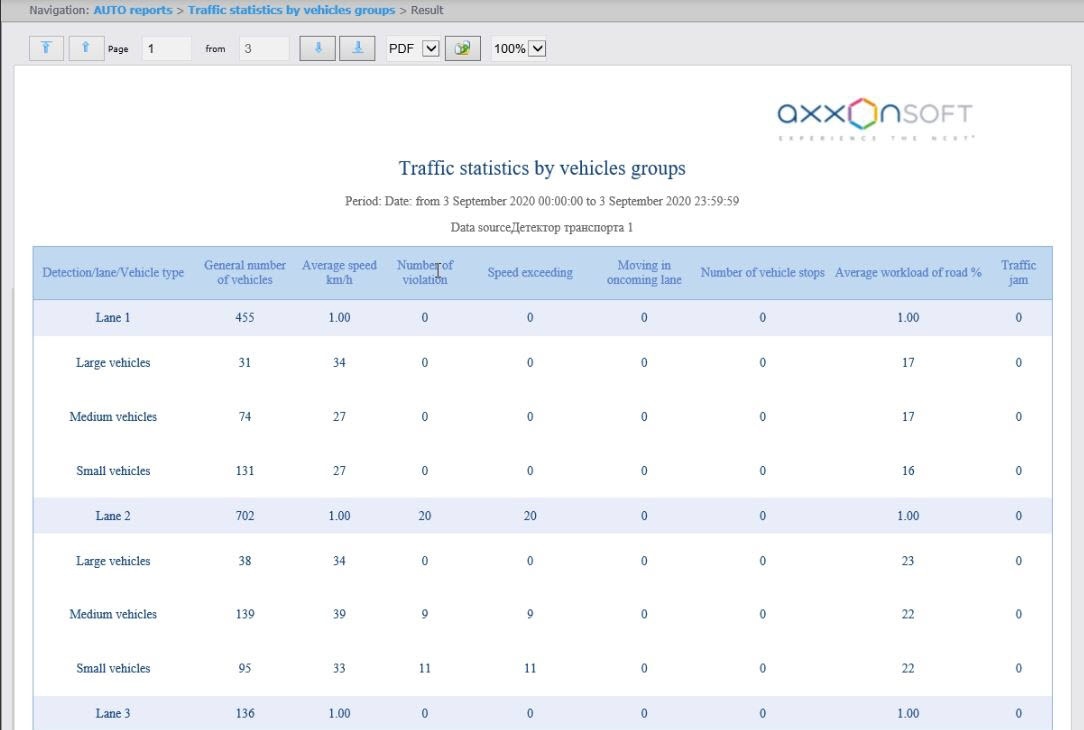

6. Click Execute to create the report (5). As a result the report in the selected form is displayed.


This report contains the following information for each selected lane and vehicle type:

This report can be saved to a file in the following formats:

• PDF;
• Excel;
• Csv.
