Note

You can use templates when you create a report.

To add a new template, click Report templates → New template and fill in the Name and Description fields. The template will use the selected parameters of the current report.

Templates work the same way as templates in the scheduler and can be used interchangeably.

When you create a response using a template, click Report templates at the top of the page and select the required template from the list of saved templates (the required template is highlighted). As a result, the parameters of the current report are updated according to the selected template.

Attention!

To display frames from cameras in the created report, you must configure the video player (see Video player settings).

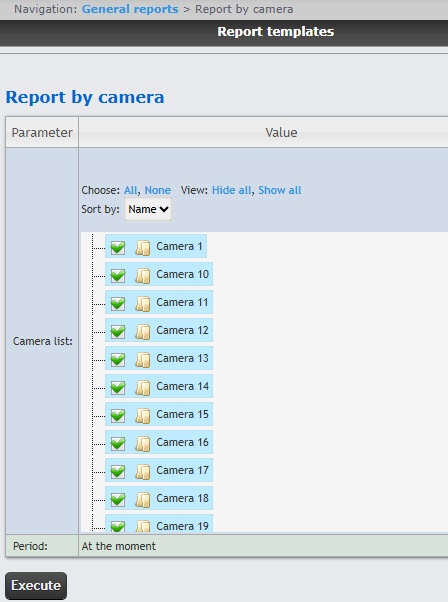

To create the Report by camera:

  1. Select the Report by camera type (see Select the type of general report).
  2. In the Camera list list, set the checkboxes next to the cameras that you want to include in the report. Click All to select all objects from the list. Click None to deselect. Click Show all to expand the object structure. Click Hide all to hide the object structure.
  3. By default, the list of cameras is sorted by name. To sort by number, select this option from the Sort by drop-down list.
  4. To create the report, click the Execute button.
    As a result, a report by camera is displayed:

The report by camera contains the following information:

  • Camera name in Axxon PSIM.

  • Camera IP address.

  • Camera ID.

  • Frame from the camera at the time of the report generation. The frame is taken from the video stream, which is intended for recording the archive.

The Report by camera is created.
