Report of current objects state

Note

You can use templates when you create a report.

To add a new template, click Report templates → New template and fill in the Name and Description fields. The template will use the selected parameters of the current report.

Templates work the same way as templates in the scheduler and can be used interchangeably.

When you create a response using a template, click Report templates at the top of the page and select the required template from the list of saved templates (the required template is highlighted). As a result, the parameters of the current report are updated according to the selected template.

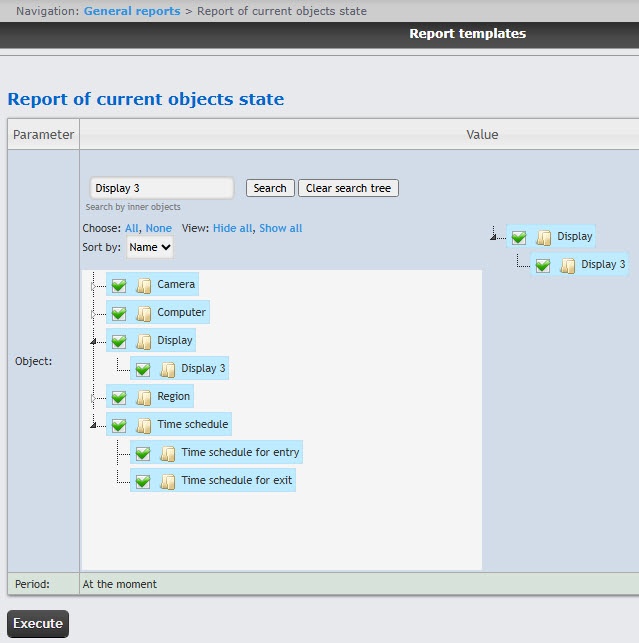

To create the report of current objects state:

Select the Report of current objects state (see Select the type of general report).

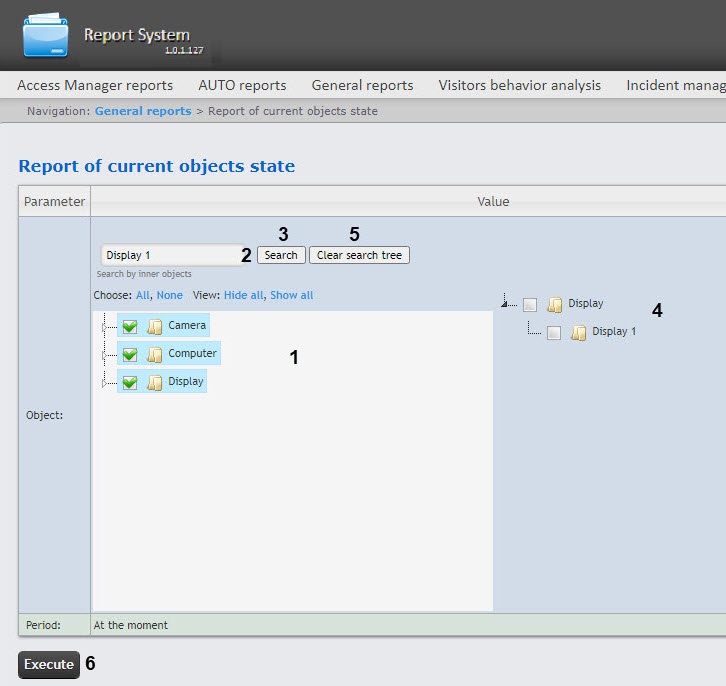

In the Object field, set checkboxes next to those objects whose current state must be displayed in the report. Click All to select all objects from the list. Click None to deselect. Click Show all to expand the object structure. Click Hide all to hide the object structure.
Note
The Object field displays only those objects that can be assigned a status displayed on the map.
To search for the inner object, enter its name (at least four characters) into the search field and click the Search button. The found objects are displayed in the search tree to the right of the page. Click the Clear search tree button to remove the objects from the search tree.
By default, the list of objects is sorted by name. To sort by number, select this option from the Sort by drop-down list.
Click the Execute button to create the report.
Note
If the search tree is empty, the report is created on the objects selected in the Object area. Otherwise, the report is created on the objects selected in the search tree.

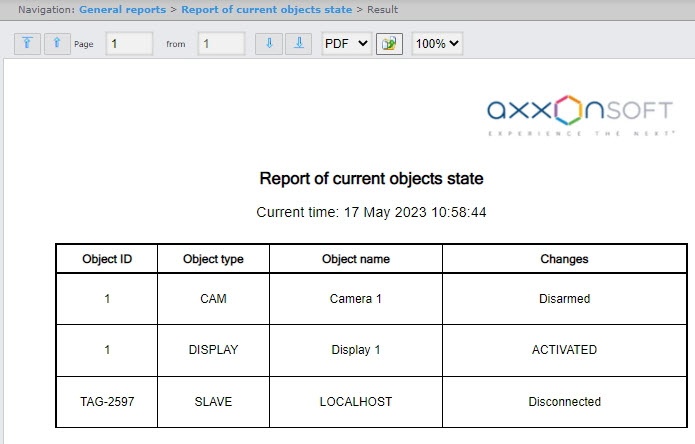

Example of the report of current objects state.

The Report of current objects state is created.
