Assigning commands to joystick buttons using Registry Editor

Here is a short list of actions that are to be performed in order to configure the joystick buttons. Detailed information on how to use the Windows OS registry can be found in the Appendix 2. Relevant information on using Windows operating system section of Administrator's Guide.

Assign commands to the joystick buttons in the Windows OS registry as follows:

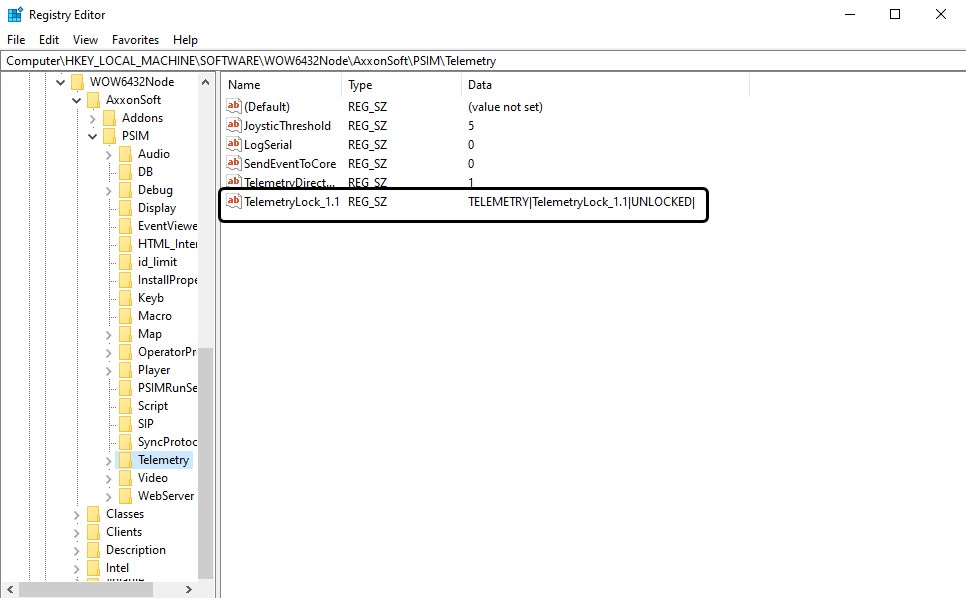

Open the TELEMETRY folder of the HKEY_LOCAL_MACHINE\SOFTWARE\AxxonSoft\PSIM registry branch (HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\AxxonSoft\PSIM for 64-bit system).
Add a string parameter to the TELEMETRY folder.
Assign the name to the string parameter, identical to the number of the joystick button in the Windows OS.

Note.
To define the numbers of the joystick buttons in the Windows OS, use the Game devices application.
Assign the value to the string parameter, identical to the name of the command executed by the PTZ device in Axxon PSIM (the value is to be entered in uppercase). Available commands in Axxon PSIM are listed in the table below:

Symbol	Command
AUTOFOCUS_ON	Activate the autofocusing option
AUTOPAN_END_P	Set the autopan endpoint
AUTOPAN_START	Start the autopan
AUTOPAN_START_P	Set the autopan start point
AUTOPAN_STOP	Stop the autopan
CLEAR_PRESET	Clear the selected preset
D2OFF	Disable additional dynamic settings for Panasonic PTZ cameras for improving an analog video signal
D2ON	Enable additional dynamic settings for Panasonic PTZ cameras for improving an analog video signal
DOWN	Rotate the camera lens down
FOCUS_IN	Focusing the image in
FOCUS_OUT	Focusing the image out
FOCUS_STOP	Stop focusing the image in/out
GO_PRESET.N	Rotate the video camera to the position set in N preset
HOME	Rotate the video camera to the initial (home) position
IRIS_CLOSE	Close the iris diaphragm
IRIS_OPEN	Open the iris diaphragm
IRIS_STOP	Stop the iris diaphragm
LEFT	Rotate the camera lens left
LEFT_DOWN	Rotate the camera lens left and down
LEFT_UP	Rotate the camera lens left and up
PATROL_LEARN	Start the programming procedure of patrolling by learning the video camera behavior
PATROL_PLAY	Start patrolling
PATROL_STOP	Stop patrolling
RIGHT	Rotate the camera lens right
RIGHT_DOWN	Rotate the camera lens right and down
RIGHT_UP	Rotate the camera lens right and up
SET_PRESET	Save the current position of the video camera in the selected preset
STOP	Stop the camera lens rotation
UP	Rotate the camera lens up

Repeat steps 2-4 for each joystick button to which the command is to be assigned.

Joystick buttons are now configured.
