A general way to configure a camera with the license plate number recognition and vehicle speed detection functions is as follows:

  1. Add a camera via the Camera discovery tool or manually (see Configuring video acquisition from IP devices).

  2. If a camera was created manually, then you need to create an Embedded detector object on the basis of the Camera object and configure it as follows:

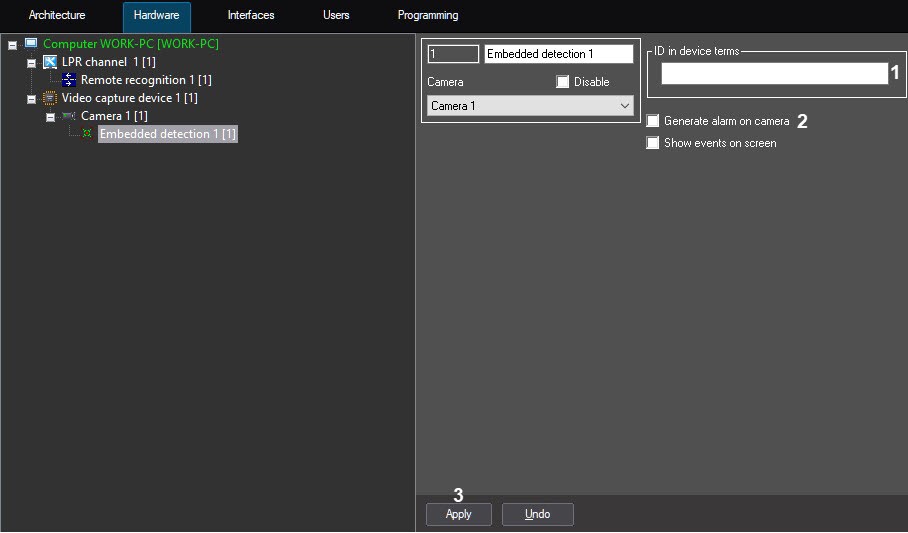

    1. Go to the Embedded detector object settings panel.

    2. In the ID in device terms field (1), specify the required value:
      • lpr_detection - the id for working with a camera with a LP number recognition function;

      • radar_detection - the id for working with a camera with a vehicle speed detection function.

        Attention!

        • The id may differ from the specified one depending on the camera model.
        • If the camera supports both the LP number recognition and the vehicle speed detection, then for their simultaneous operation, it is necessary to create an Embedded detector object for each function and specify the id of the corresponding one.
    3. Set the Generate alarm on camera checkbox (2) if the alarm should be generated on the camera by detector’s response.
    4. Click the Apply button to save the changes (3).
  3. Create the Remote recognition object on the basis of the LPR channel object and configure the LPR channel object (see Activating the software module used for identifying the plates).

  4. In order for the LP recognition and vehicle speed detection events to be displayed in the user interface, it is necessary to create and configure the Monitor and Vehicle Tracer objects on the Interfaces tab (see The Vehicle Tracer interface module).

    Note

    If there are no data on the recognized LPs displayed in the Active Monitor of the Auto PSIM — although they are found in the Debug window and Event protocol — it is necessary to change the RemoteLpr.x.NearestTime registry key value. X is the identifier of the LPR channel object in the Axxon PSIM software on which the remote recognition module is used (for more details, see Registry keys reference guide, for more information about working with the registry, see Working with Windows OS registry).

    The RemoteLpr.x.NeatestTime registry key value can also be changed by the Debug window (see Editing the Nearest Time for the specified remote recognition module).

  5. Go to the camera web-interface and configure the camera in a way necessary to achieve the stable license plate number recognition and vehicle speed detection, which meets the requirements.

Configuring the cameras with LP recognition and vehicle speed detection in a general way is complete.
