Documentation for Auto PSIM 1.0.1.

Previous page Printing and exporting the vehicle data  Using filters in the protocols Next page

You can view the video archive by event from a video camera which is used for the license plate recognition.

Note

For this feature to work, the appropriate monitor should be selected on the settings panel of the Vehicle Tracer object (see Selecting the Monitor object for playing back the video archive).

To view the video archive by event, do the following:

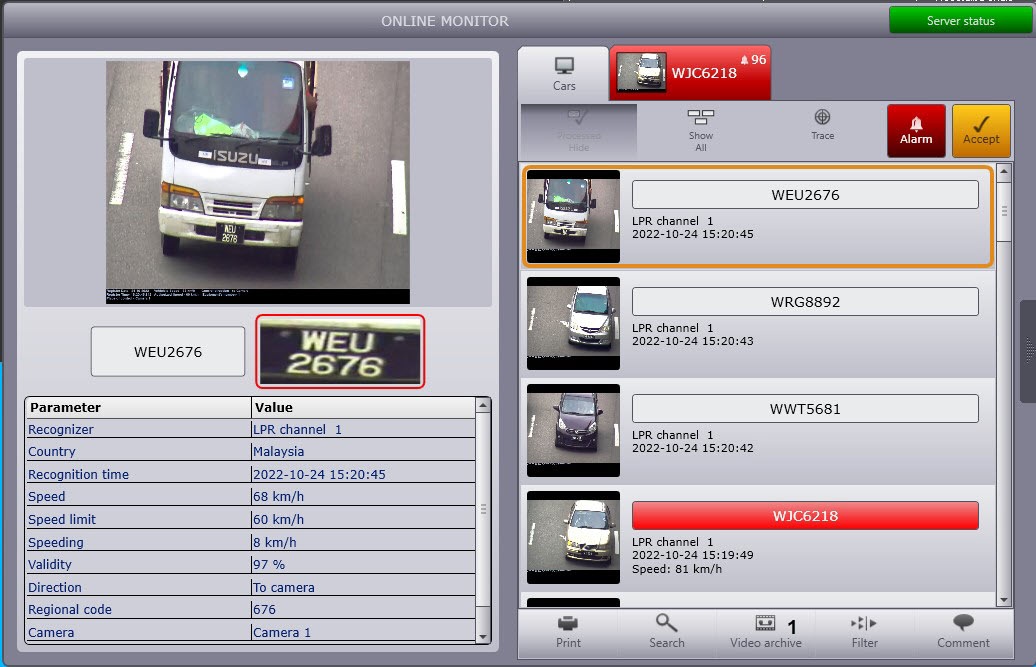

  1. Select an event in the identified vehicles protocol or alarms protocol by left-clicking on it. As a result of the operation, the online update of the protocol displayed on the screen will be suspended.
  2. Click the Video archive button (1).

    • If the Monitor object is selected for the video archive playback, the video surveillance window of the corresponding monitor will switch to the archive playback mode. For details on working with the video archive, see the Axxon PSIM. Operator's Guide, the most current version of the documentation is located in the AxxonSoft documentation repository).

    • If the AxxonOne monitor object is selected for the video archive playback (see Setting up the joint operation of Auto PSIM and Axxon One), the Axxon One interface window will open in the archive playback mode. For information on working with the video archive, see the Axxon One. Operator's Guide, the most current version of the documentation is located in the AxxonSoft documentation repository).

Viewing the video archive by event is completed.
