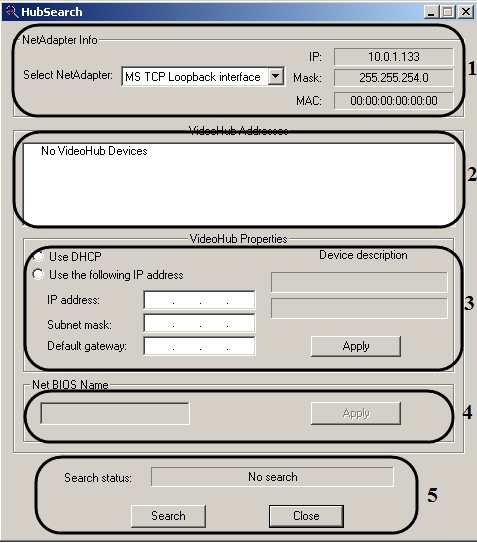

User interface (dialog window) of HubSearch.exe  utility  is shown in the figure.



The table shows the content of HubSearch.exe  utility  user interface.

Group №

group

Element’s name

description

1

NetAdapter Info

Dropdown list Select NetAdapter

Selection of net adapter

 Display-only field IP

Displays IP-address of computer’s netcard

Display-only field Mask

Displays mask of computer’s netcard

Display-only field MAC

Displays MAC-address of computer’s netcard

2

VideoHub Addresses

Field VideoHub Addresses

Displays found devices

3

VideoHub Properties

Switch Use DHCP

Enables protocol of dynamic site configuration

Switch Use the following IP address

Enables net settings

Field IP address

Set IP address of the device

Field Subnet mask

Set address mask of the device

Field Default gateway

Set the gate

2 Display-only fields Device Description

Displays parameters of the device

Button Apply

Is used for applying the new settings

4

Net BIOS Name

Field Net BIOS Name

Set the netname of the device

Button Apply

Is used for applying the new settings

5

Search status

Display-only field Search status

Displays status of device search

Button Search

Serves to start the search

Button Close

Closes dialog window
