To set up the Voice Message object, do the following:

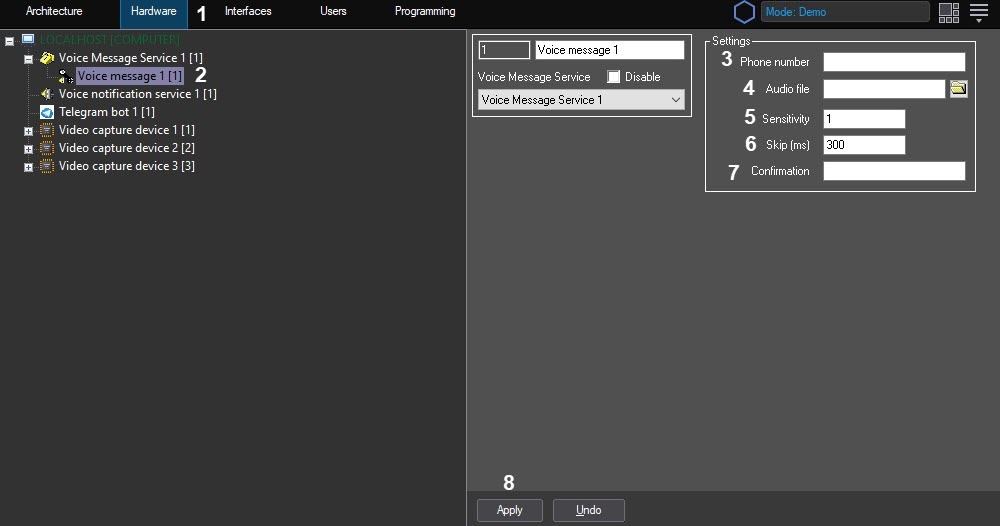

  1. Go to the Hardware tab of the System Settings window (1).
  2. Create the Voice Message object in the Voice Message Service node in the objects tree (2). The object appears in the objects tree, and the settings panel for this object opens on the right side of the System Setting window.
  3. Enter the telephone number into the Phone number field in the following format: [prefix “+”] [country code] [city/provider code] [phone number] with no spaces or other delimiters (3).
  4. Load the audio file to be sent as a voice message (4).
  5. Specify the sensitivity level, which will eliminate noise on the telephone line, ensuring correct message transmission (5). Values from 1 to 10 are acceptable.
  6. Specify the delay between the recipient answering and the beginning of the message (6). Set in milliseconds (1000 ms = 1 sec).
  7. Enter the code for the recipient to confirm receipt of the message (7). This is a digital code set in the system which the recipient dials in tone mode to confirm receipt of the message.
  8. Press the Apply button to save the settings for the Voice Message object (8).
