To set the parameters of the Audio player interface box, do the following:

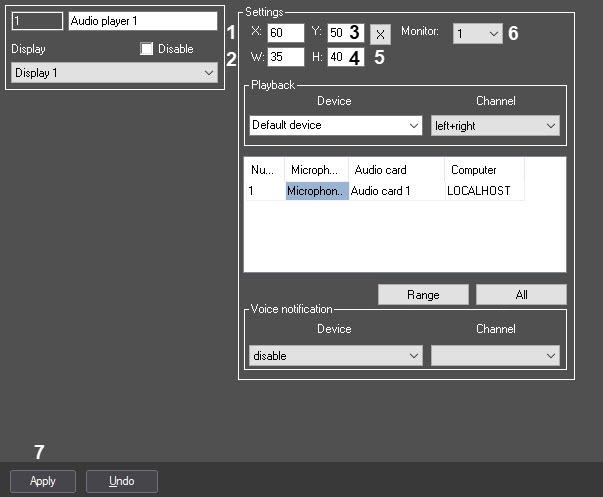

  1. Go to the settings panel of the Audio player interface box.
  2. Set the Audio player interface box position in one of the following ways:
    1. Manually:
      1. Set the coordinates of Audio player window’s left upper corner: fields X (horizontal indent from the left image border) and Y (vertical indent from the upper image border - 1 and 2. Coordinates are given in percentage in relation to screen size horizontally and vertically.

      2. Set the dimensions of the Audio player interface box: fields W (window’s width) and H (window’s height) – 3 and 4. Dimensions are given in percentage in relation to screen size horizontally and vertically.

        Note.

        Minimal allowed value of parameter W is 35%, H – 40%. With lesser value displayed width or height of the window will correspond to minimal allowed value.
    2. With a test window:
      1. Click X (5).

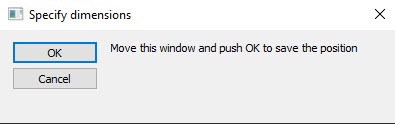

      2. Position the Set dimensions test window where the Audio player window should be displayed.
      3. Click OK. As a result, the coordinates in the fields X, Y, W, H will be set in accordance with the size and position of the test window.

  3. From the Monitor drop-down list, select the number of monitor for which coordinates are specifying (6).

    Note.

    The monitors are numbered from left to right, from top to bottom, i.e. the 1st monitor is the one in the upper left corner regardless of which monitor is assigned as main or what number the monitor has in OS.

  4. Click Apply button to save all the changes (7).

Setting the parameters of the Audio player interface box is completed.
