To limit access for Operator to playback the archive, do the following:

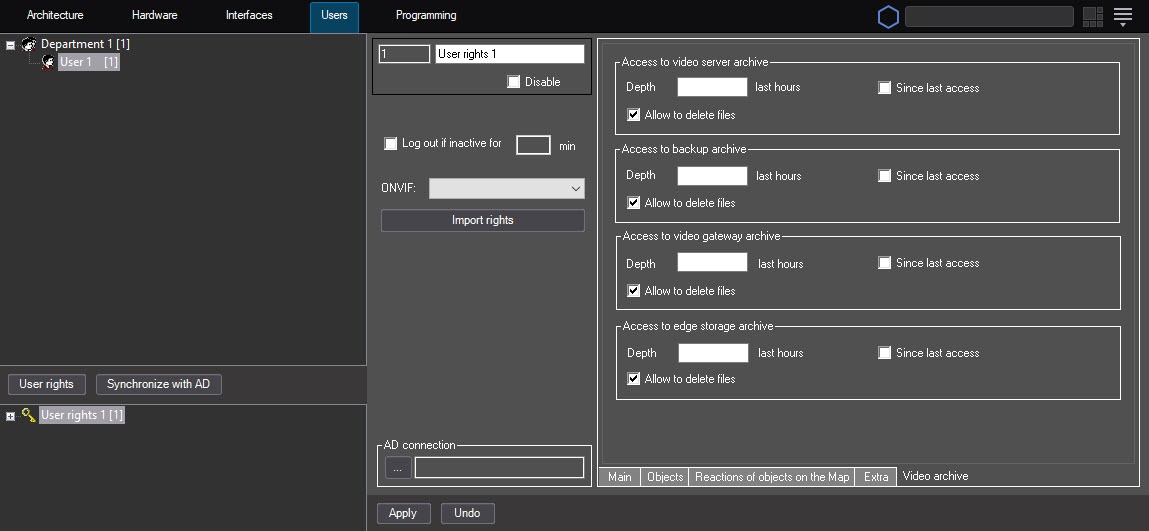

  1. Go to the Users tab in the System Settings dialog box (1).
  2. In the objects tree that is below the User permissions button in the Users tab, select an object with the same name as the permissions to be changed (2).
    The settings panel for the User permissions object is displayed in the right part of the System Settings dialog box.

  3. Specify the number of hours for viewing in the Depth ___ last hours field (3).

    Note

    The number of last video archive hours for viewing should be whole.

    Note

    Input the 0 value in the Depth ___ last hours field to disable access to the archive.

  4. If the hours since the last entrance to the system are counted, set the Since last access checkbox (4). If the hours are to be counted since the current moment, then leave the Since last access box clear.

    Note

    If the Since last access checkbox is set and the number of hours for viewing is specified, then last hours are counted till the registration moment.

    Note

    If the Since last access checkbox is set, but the Depth ___ last hours field is left blank, the access to the main archive playback is not limited.

  5. Click the Apply button (5).

The access to archive playback is now limited.
