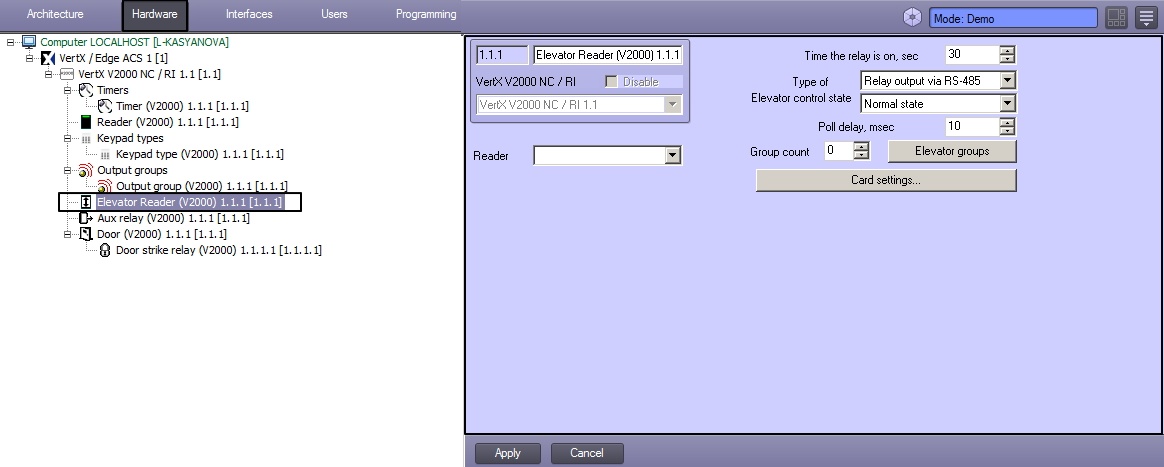

To configure a V2000 controller's elevator readers, use the setup panel of the relevant Elevator Reader (V2000) object. To find this object, go to the Settings dialog box, click the Hardware tab, select the relevant VertX V2000 NC/RI object, and browse its object subtree.

To configure the elevator readers:

  1. Go to the Elevator Reader (V2000) object's setup panel.
  2. In the Time the relay is on, sec field, enter a time period (in seconds). This is the time during which the relay is on (1).
  3. In the Type of output drop-down list, select the elevator reader's type of output: relay output via RS-485 or via RS-232 (2).
  4. In the Elevator control state drop-down list, select the elevator control state(3).
  5. In the Poll delay, msec field, enter a time period (in milliseconds). This is the time period between two consecutive polls of the elevator reader (4).
  6. In the Group count field, enter the number of elevator groups (5).
  7. Assign relays to elevator groups:
    1. Click Elevator groups (6).
      The Elevator control group relays window opens.
    2. For each of the relay, go to the Elevator group column and select its elevator group (1).

    3. Click Apply to save the changes (2).

      Note:

      To come back to the setup panel without saving the changes, click Cancel (3).
  8. Assign users to elevator groups:
    1. Click Card settings (7).
      The Card settings window opens.

    2. For each of the system's users, go to the In-schedule group column and select the user’s in-schedule group (1).

      Note:

      For more detailed information on schedules, refer to the HID system's vendor documentation.
    3. For each of the system's users, go to the Out-schedule group column and select the user’s out-schedule group (2).

    4. Click Apply to save the changes (3).

      Note:

      To come back to the setup panel without saving the changes, click Cancel (4).
  9. In the Reader drop-down list, select the reader used in the elevator(8).
  10. Click Apply to save the changes (9).

The elevator readers are now configured.
