Configuring the Gate controller parameters

To configure the Gate controller, do the following:

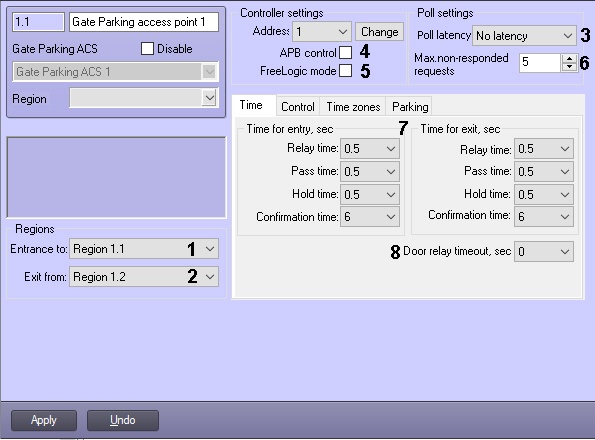

Go to the Gate Parking access point object’s settings panel.
From the Entrance to: drop-down list select the Region object corresponding to the area located on the side of exit reader (1).
From the Exit from: drop-down list select the Region object corresponding to the area located on the side of entry reader (2).
From the Poll latency: drop-down list select the controller poll latency (3).
Set the APB control checkbox to activate the antipassback (4).
Note.
Antipassback parameters can be reset for any user (see Appendix 2. Resetting antipassback (APB) parameters for a given user).
Set the FreeLogic mode checkbox to activate the reactions mode on which the controller can enable and disable exits when some specified events appear inside of controller (5).
Specify maximal number of unreplied requests (6). Connection with controller will be lost while exceeding this number.
From the Door relay timeout drop-down list select time interval in seconds between access card presenting and opening of door relay (8).
Go to the Time tab.
Configure the lock parameters for passes on entry and exit (7):
1. From the Relay time: drop-down list select the time period in seconds during which the lock will be opened.
  Attention!
  If the relay time equal to 0 the lock is failed to open by available ways: using the key, button or corresponding command.
2. From the Pass time: drop-down list select the time period in seconds during which the user can open the door.
  Note.
  Access time and relay time start to count off from the moment of relay trigerring (i.e. lock opening), so the access time can’t be less than relay time.
3. From the Hold time: drop-down list select the time period in seconds after door opening during which the door is to be closed.
  Note.
  If the door will not be closed after time of holding open expire then the Door not closed events is fixed. It is followed by signal and light indication till the door will be closed.
4. From the Confirmation time: drop-down list select the time period in seconds during which access is to be confirmed by card (see Configuring Gate access modes section).
  Attention!
  If the confirmation time is 0 the confirmation timeout is not limited.

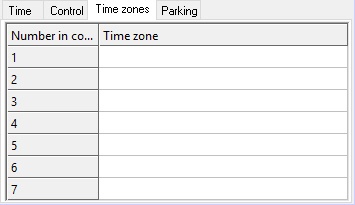

Go to the Time zones tab and configure time zones in case of users have access level with time zone different from Always and Never. For each time zone of Gate controller select the time zone of the ACFA PSIM software from the corresponding drop-down list.
Go to the Parking tab.

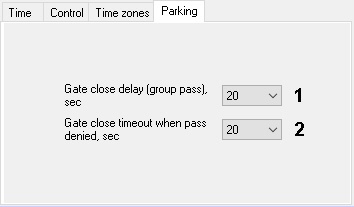

Set delay in seconds before closing the gate while group pass is performed (1).
Set gate closing timeout in seconds when pass is denied (2).
Click the Apply button.

Configuring parameters of the Gate controller is completed.
