Advanced door configuration

To perform advanced configuration of a door, do the following:

Go to the TC3XY Door object's settings pane.

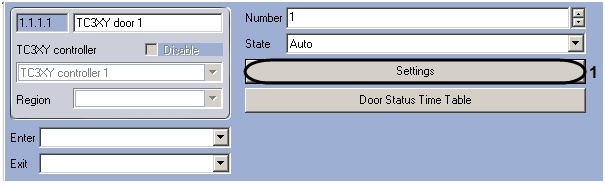

Click the Settings button (1). A window for configuring advanced door settings will open.

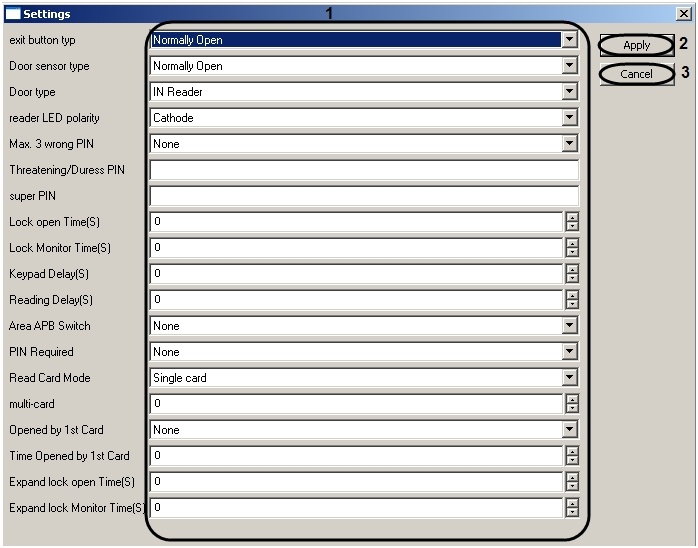

Configure the door (1).
Descriptions of advanced door settings:

Setting	How assigned	Description	Possible values
exit button type	Selected from dropdown list	The type of the exit button	Normally Open Normally Close
Door sensor type	Selected from dropdown list	The type of the door sensor	Normally Open Normally Close
Door sensor type	Selected from dropdown list	The type of reader installed on the door	IN Reader IN/OUT Reader
Reader LED polarity	Selected from dropdown list	The polarity of the reader's LED	Cathode Anode
Max. 3 wrong PIN	Selected from dropdown list	Indicates whether or not to lock the reader after the third invalid entry of a PIN code	None Use
Threatening/Duress PIN	Typed into the field	PIN code for entry under duress	0..9999
super PIN	Typed into the field	A universal PIN code	0..99999999
Lock open Time(S)	Entered into the field using the up/down buttons	The period of time (in seconds) for which the lock will remain unlocked	0..255
Lock Monitor Time (S)	Entered into the field using the up/down buttons	The period of time (in seconds) in which the lock will be checked	0..255
Keypad Delay	Entered into the field using the up/down buttons	The delay (in seconds) for using the keypad	0..255
Reading Delay	Entered into the field using the up/down buttons	The delay (in seconds) for reading a card	0..255
Area APB Switch	Selected from dropdown list	Indicates whether or not to use area-switching	None Use
PIN required	Selected from dropdown list	Indicates whether or not a PIN code is required	None Use
Read Card Mode	Selected from dropdown list	The mode to use for reading access cards	Single card multi cards
multi-card	Entered into the field using the up/down buttons	The number of cards required for access through the door	0..8
Open by 1st Card	Selected from dropdown list	Indicates whether or not the door will open based on the first card	None Use
Time Opened by 1st card	Entered into the field using the up/down buttons	The period of time (in seconds) in which the door will open based on the first card	0..255
Expand lock open Time (S)	Entered into the field using the up/down buttons	The extended period of time (in seconds) in which a lock is unlocked	0..255
Expand lock monitor Time (S)	Entered into the field using the up/down buttons	The extended period of time (in seconds) in which a lock is checked	0..255

Click the Apply button (20).

Note:

To close the Settings window without saving the changes made, click the Cancel button (21).

This completes the advanced door configuration.
