To open the Properties dialog box for a Camera object, see Section Editing object properties in the templates editor.

The Properties dialog box opens.

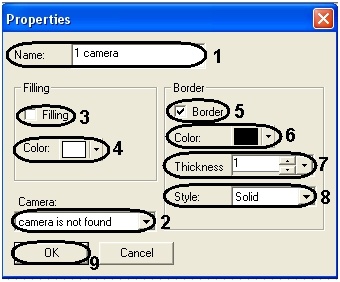

To edit the properties of a Camera object:

  1. In the Name field, enter a name for the object (1).
  2. From the Camera drop-down list, select a connected video camera to show video in the object's area (2).
  3. If you want to fill the object's interior, select the Filling check box ( 3).
  4. From the Color drop-down list, select a fill color (4).
  5. If you want to highlight the object's border, select the Border check box (5).
  6. From the Color drop-down list, select a border color (6).
  7. In the Thickness field, set a border thickness value (7). Use either the up and down buttons or the slider.
  8. From the Style drop-down list, select a border style (solid, dot-and-dash, or dashed) (8).
  9. To save changes and close the Properties dialog box, click OK (9).

The Camera object properties are now edited.
