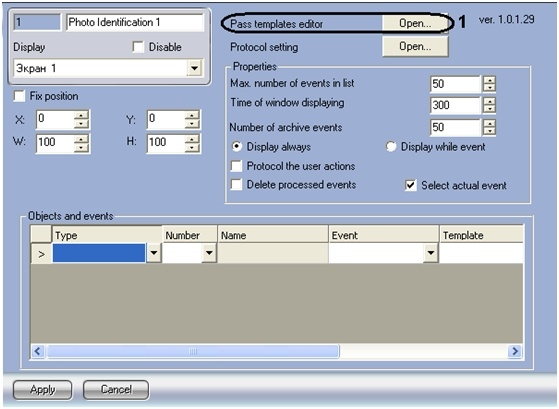

To launch the pass templates editor, go to the Photo ID object's setup panel and click Open...
The Templates editor – New template 1 window opens. Use the window to create a new template or edit an existing one.
The templates editor window contains the following GUI elements.
The main menu of the templates editor (template operations, template viewing, template editing, tools for creating templates, and "help").
Creates a new template.
Opens a template for editing.
Saves changes to the open template.
The field to enter a template width (in pixels).
The field to enter a template height (pixels)
The color picker to set the template sheet color
The button to hide/show the grid on the template sheet
The button to align a selected object to the grid
The Select tool: Activates a selected object for editing.
Graphical Object Creation Tools
Rectangle: Creates a rectangle on the template sheet.
Ellipse: Creates an ellipse on the template sheet.
Line: Creates a line on the template sheet.
Image: Inserts an image from a file into a selected area of the template.
Non-Graphical Object Creation Tools
Text: Creates a text box on the template sheet.
Photo: Creates, on the template sheet, a box to hold an employee's photo on the template sheet.
Database field: Creates, on the template sheet, a box to show employee information from Intellect's database.
Button: Creates, on the template sheet, a box to show employee information from Intellect's database.
Camera: Creates, on the template sheet, a box to show video from a connected video camera.
