There are several ways to set and edit the width and height of a template:

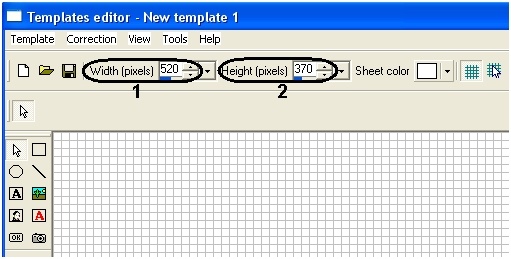

  1. Use the Width (px) (1) and Height (px) numeric data entry fields (2).  You may either enter numbers in the fields or use the up and down buttons.

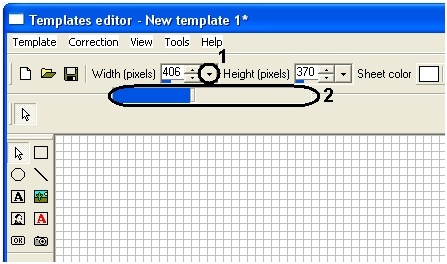

  2. Use the slider: Click the larger down button located next to the smaller up and buttons (1). The slider will be displayed. While holding the button, move your mouse over the slider's indicator and then drag the indicator to set the required value ( 2). To increase the value, drag the indicator to the left. To decrease the value, drag the indicator to the right.

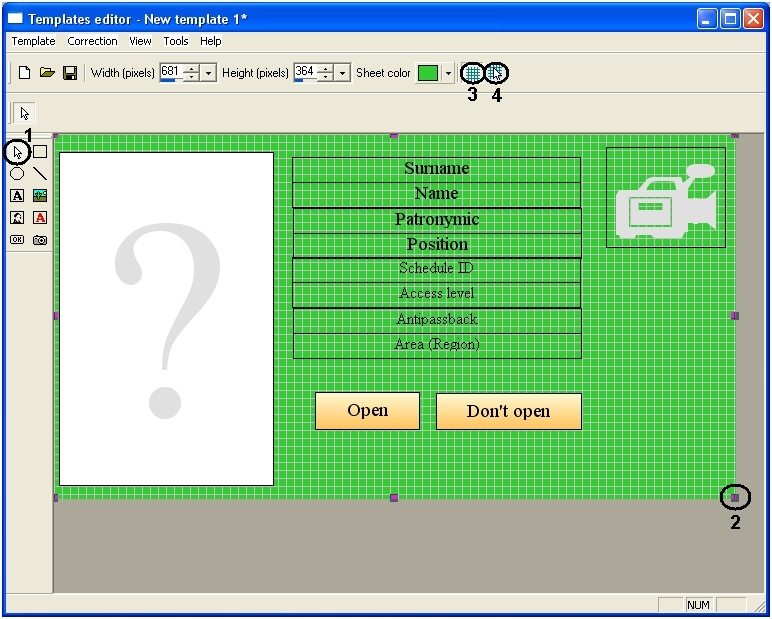

  3. Use the Select tool: Click on the tool (1) and then click on the displayed (newly created) template and use the markers to set the required width and height (2).

To make it easier to edit the width and height of templates and to place objects inside templates, the templates editor includes the Grid feature (3-4).
