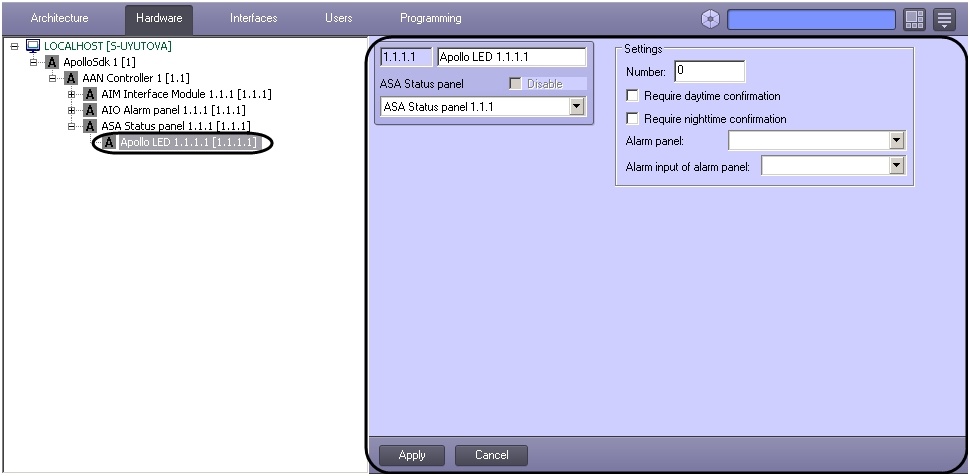

An ASA status panel's sensors are configured on the LED object's settings panel. This object is created based on an ASA Status Panel object.

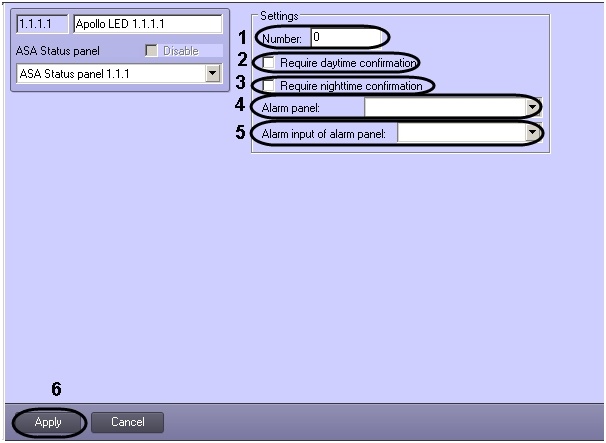

The ASA status panel's sensors are configured as follows:

  1. Go to the LED object's settings panel.
  2. In the Number field, enter the sensor's index number (1).
  3. If alarms must be confirmed during the day, check the Require daytime confirmation option (2).
  4. If alarms must be confirmed at night, check the Require nighttime confirmation option (3).
  5. Select the alarm panel associated with this sensor from the corresponding dropdown list (4).
  6. Select the alarm panel input associated with this sensor from the corresponding dropdown list (5).
  7. To save any changes made, click the Apply button (11).

This completes the configuration of the AIO alarm panel's relay.
