If the object of the controller or  terminal is created automatically, the connection setup is not required. If object created manually, you must specify the settings for connecting to the ACFA-Intellect Server as follows:

Important!

These connection settings are ignored if the Server identification system mode is used, see Configuring BioSmart UniPass and Biosmart PV-WTC.

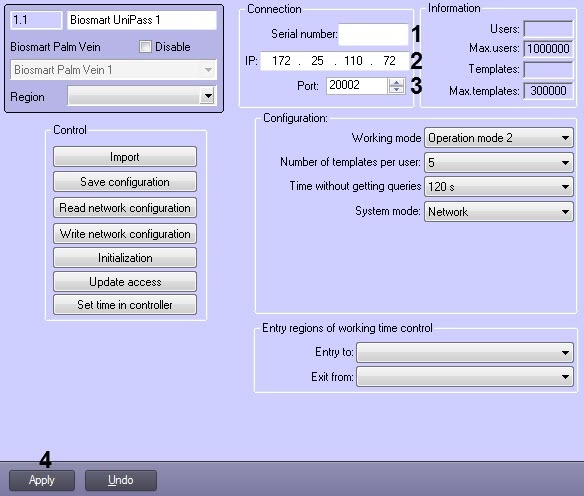

  1. Go to the settings panel of the Biosmart Unipass or Biosmart WTC object, which is created on the basis of the Biosmart Palm Vein.

  2. In the Connection section, specify the following settings:
    1. In the Serial number field, enter the factory serial number of the device (1). The serial number is the name of the device on the network as well.
    2. The IP field displays the device's IP address (2). Factory IP address is 172.25.110.72.
    3. In the Port list, select the port number for connecting the device to the computer (3). Port 20002 is used by default.
  3. Click Apply (4).

Configuring BioSmart UniPass and Biosmart PV-WTC connection to ACFA-Intellect Server
