The Rakinda device is configured as follows:

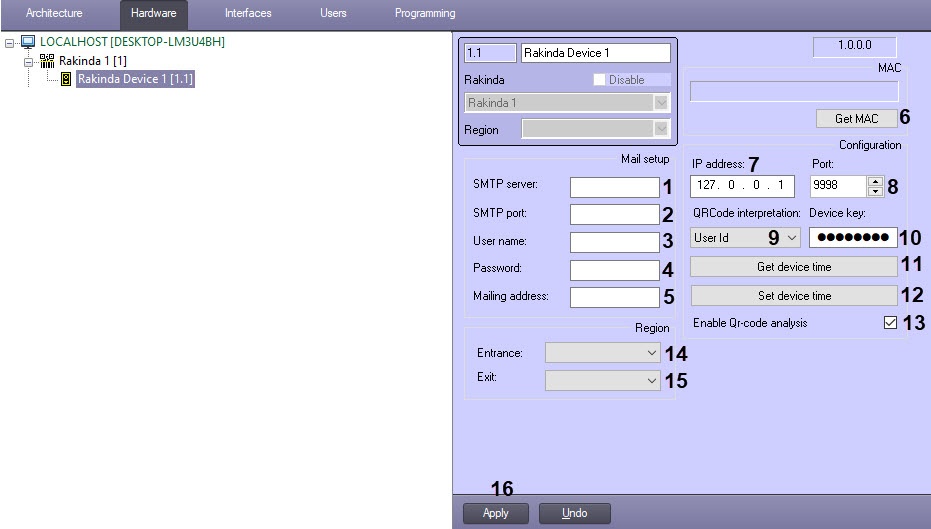

  1. Go to the settings panel of the Rakinda Device object, which is created automatically on the basis of the Rakinda object (see Configuring the Rakinda ACS connection).
  2. In order to send the generated by the Rakinda device QR-code to user’s email, do the following:
    1. In the SMTP server (1) and SMTP port (2) fields specify the address of the mail server and port number.
    2. In the User name (3) and Password (4) fields specify user’s login and password.
    3. In the Mailing address field (5) enter user’s email address.
  3. Click the Get MAC button (6) to get the MAC address of the computer where the Rakinda device is installed.

  4. If necessary, change the IP address (7) and Port (8) of the Rakinda device in the corresponding fields that are filled in automatically.

  5. From the QRCode interpretation drop-down list (9) select the field that the device expects to see in the QR-code. In this integration - only user’s ID.
  6. In the Device key field (10) enter the device key that is in the Rakinda device passport.
  7. In order to request the time from the Rakinda device, click the Get device time button (11).
  8. In order to record time on the Rakinda device, click the Set device time button (12).

  9. Set the Enable Qr-code analysis checkbox (13). If the checkbox is selected, when the device gets two-dimensional code, it sends it directly to the server to make a decision, or determines two-dimensional code itself.

  10. From the Entrance (14) and Exit (15) drop-down lists select user’s entrance and exit regions respectively.

  11. Click the Apply button (16) to save the changes.

The Rakinda device configuration is now complete.
