Forwarding the configuration to all Gate controllers is described in this section. Also it is possible to forward the configuration to each controller separately (see the Managing the configuration of a Gate controller section).

To forward the Gate ACS's configuration, do the following:

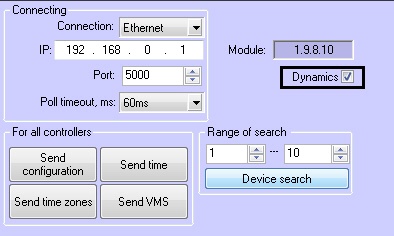

  1. Go to the For all controllers group in the Gate Parking ACS object's setup panel.

  2. To forward the Gate ACS's configuration to all the controllers, click Send configuration button (1).

    Note:

    This records the following in each controller's internal memory:
    1. the time zones;
    2. the data on the system's users;
    3.  the user access levels.
  3. To synchronize the time of all the controllers with the Server time, click Send time button (2).
  4. To forward time zones to all controllers click Send time zones button (3).
  5. To forward data of the Visitor Management System module (users, access levels, time zones, etc.) click the Send VMS button (4).

Forwarding of the Gate configuration is completed.

For automatically forwarding data of the Visitor Management System module to controller set the Dynamics checkbox and click the Apply button.



Attention!

Dynamic sending of time zones and users are only supported. Dynamic sending of user access levels is not supported due to device characteristics.
