Note

To manage the Alcoframe breathalyzer configuration, it is necessary to connect the breathalyzer to ACFA-Intellect first (see Configuring the Alcoframe connection to ACFA-Intellect).

The Alcoframe breathalyzer configuration is managed as follows::

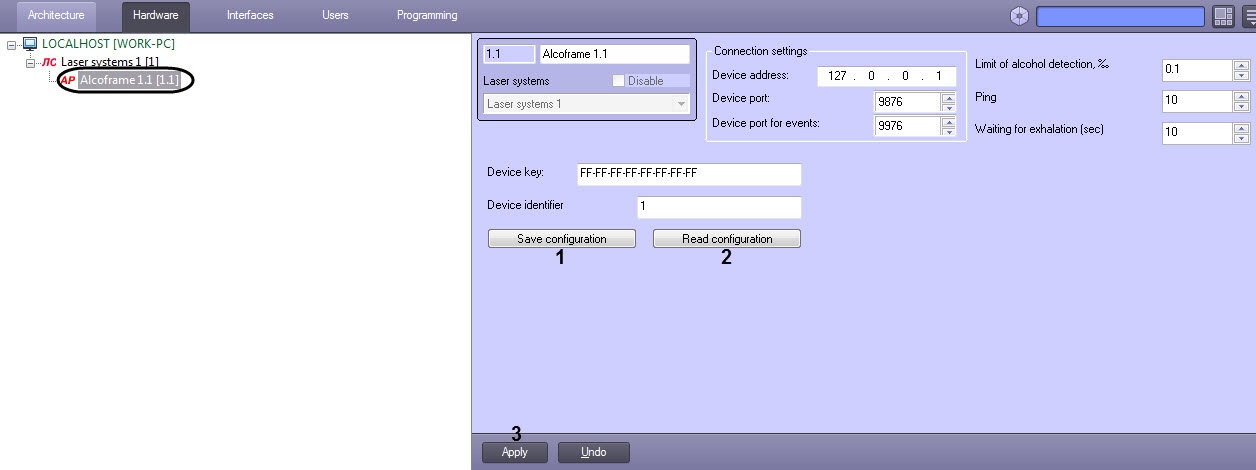

  1. Go to the Alcoframe object settings panel.
  2. Click the Write configuration button (1) to write the current configuration into the breathalyzer (see Configuring the Alcoframe breathalyzer).
  3. Click the Read configuration button (2) to read the current breathalyzer configuration (see Configuring the Alcoframe breathalyzer).
  4. Click Apply (3).

The Alcoframe breathalyzer configuration management is complete.
