A configuration may be saved to KeyKing controllers using one of the following methods:

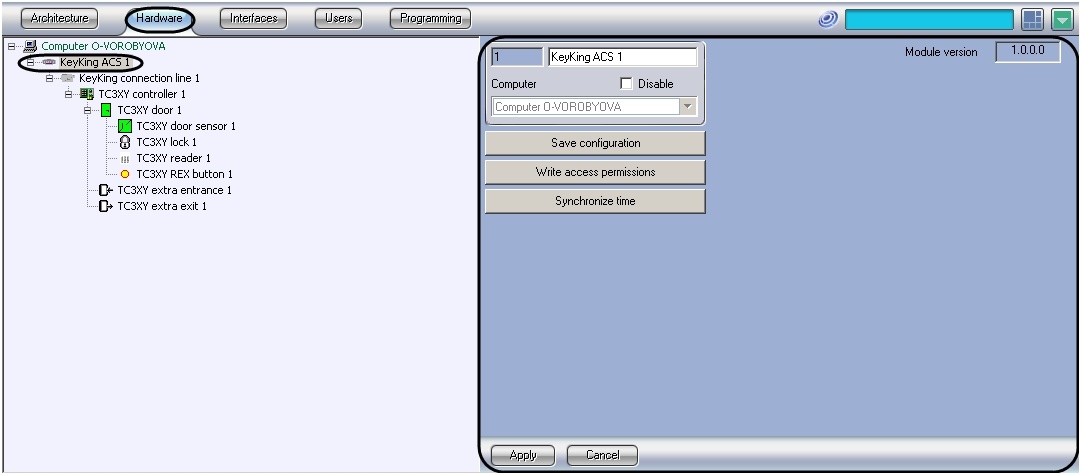

  1. Save the configuration to every controller registered in the system. To perform this operation, go to the KeyKing ACS object's settings pane.

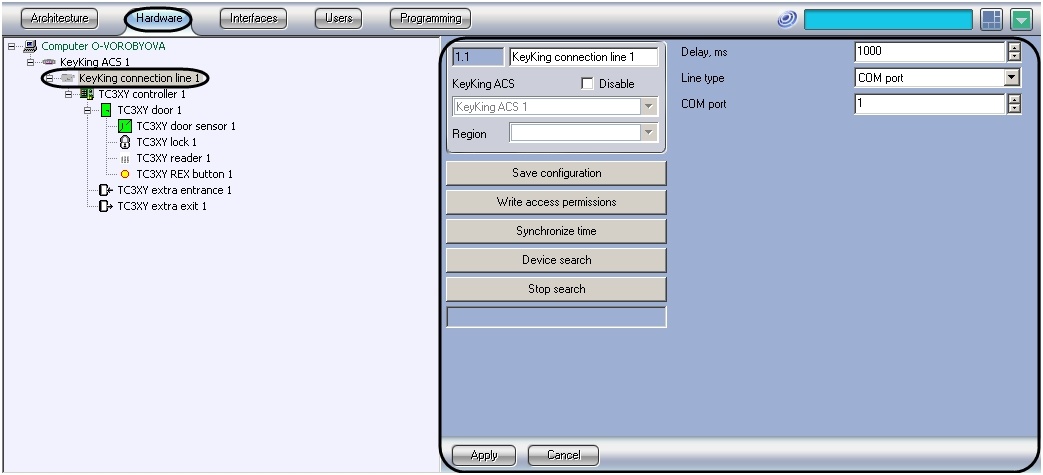

  2. Save the configuration to the controllers on a single line. To perform this operation, go to the KeyKing Connection Line object's settings pane.

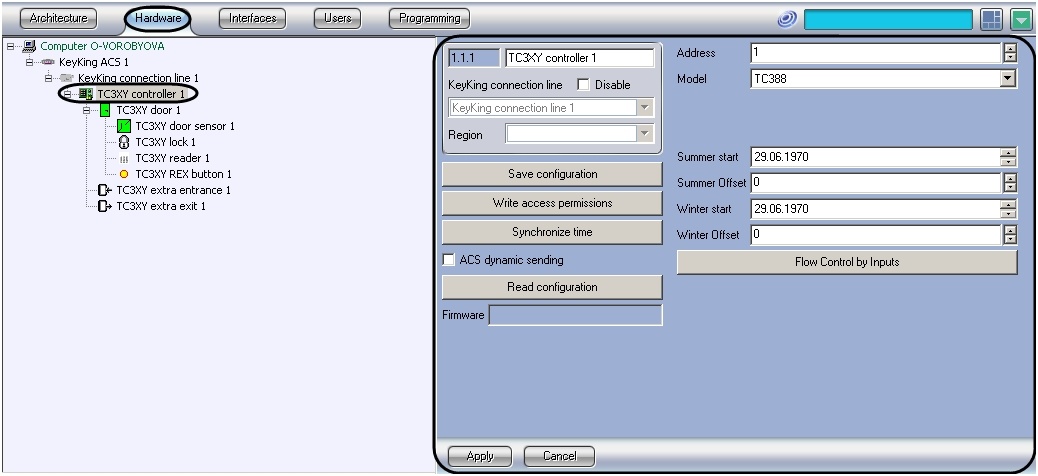

  3. Save the configuration to a particular controller. To perform this operation, go to the settings pane of the desired TC3XY Controller object.

Note:

Before saving a configuration, reading the configuration of the KeyKing controllers is recommended (see section Reading a KeyKing controller's configuration).

The hardware configuration and user access rights are saved to KeyKing controllers separately.

A configuration is saved to controllers in the following manner:

  1. To save the hardware configuration to a controller (controllers), click the Save configuration button (1).
  2. To save user access rights to a controller (controllers), click the Write access permissions button (2).
  3. To save Server times to a controller (controllers), click the Synchronize time button (3).

This completes the process of saving a configuration to KeyKing controllers.
