The Search access level window can be opened while searching for access level (see the Going to search for access level section), department configuring (see the Add department section), searching for department (see the Working with Search for department window section) or while user configuring (see the Assigning access levels to a user section).

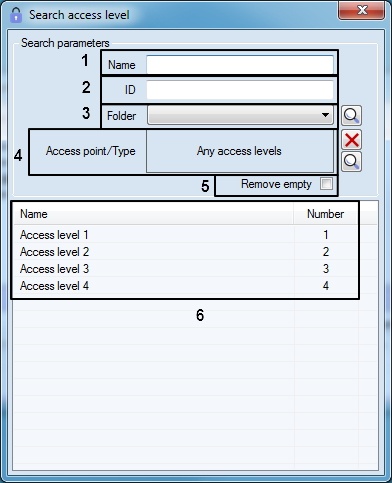

Working with the Search access level window is performed as follows:

  1. Enter name of the required access level in the Name field if it's required (1).
  2. Enter the identification number of the required access level in the ID field if it's required (2).
  3. Select the folder the level is located in from the Folder drop-down list if it's required (3).
  4. If it's required set the list of access points which the required access levels should contain:

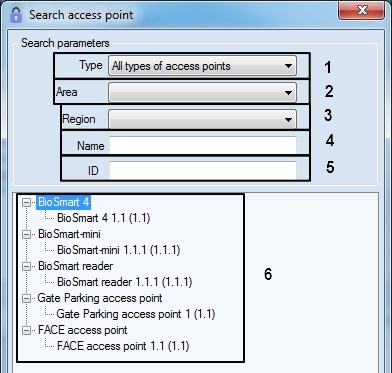

    1.  Click the  button. The Search access point window will be opened.
    2. Select type of the required access point from the Type drop-down list if it's required (1).
    3. Select the location of the access point from the Area drop-down list if it's required (2).
    4. Select the location of the access point from the Region drop-down list if it's required (3).
    5. Specify the name of access point or its part in the Name field if it's required (4).
    6. Specify the identification number of the required access point in the ID field if it's required (5).
    7. The search will be performed automatically, and the list of search results will be displayed below (6).

    8. Double-click on the required access point in the list (6).

      Note

      To clear the list of access points click the  button.

  5. If it's required to remove access levels not associated to any access points from the search results, set the Remove empty checkbox (5).
  6. Results of access levels search will be displayed in the list (6). Search is case-insensitive. All objects corresponding fields of which contain specified values will be found.

To sort search results click the left mouse button on title of corresponding column.

While double click on access level, the Search access level window will be closed and corresponding access level will be selected in the list in the Access levels tab or will be added to department or user.

Search for access level is completed.
