To configure loitering detection tool, do as follows:

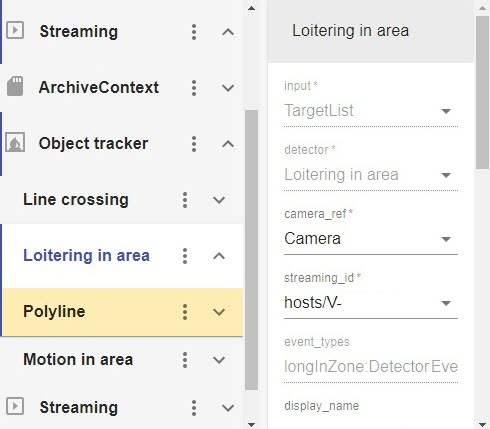

- Select the Loitering in area object.
Configure parameters.
Parameter Description Enable Enable/disable detection tool. Maximum object height
Minimum object height
Set the maximum and minimum height of the target object as a percentage of the FoV height. Maximum object width
Minimum object width
Set the maximum and minimum width of the target object as a percentage of the FoV width. Maximum object speed
Minimum object speed
Set the maximum and minimum speed of the target object as a percentage of the frame per second. Object type Select the type of the target object that should trigger the detector.
2 or more human objects moving along each other are treated by the system as a Group. If you select this type of object for tracking, single human motion, even if detected, will not cause alarms.
If you select the Human type, group motion will not cause alarms.
Event duration to trigger detection (sec)
Enter the maximum object loitering time in seconds. This value should be in the range [0; 3600].

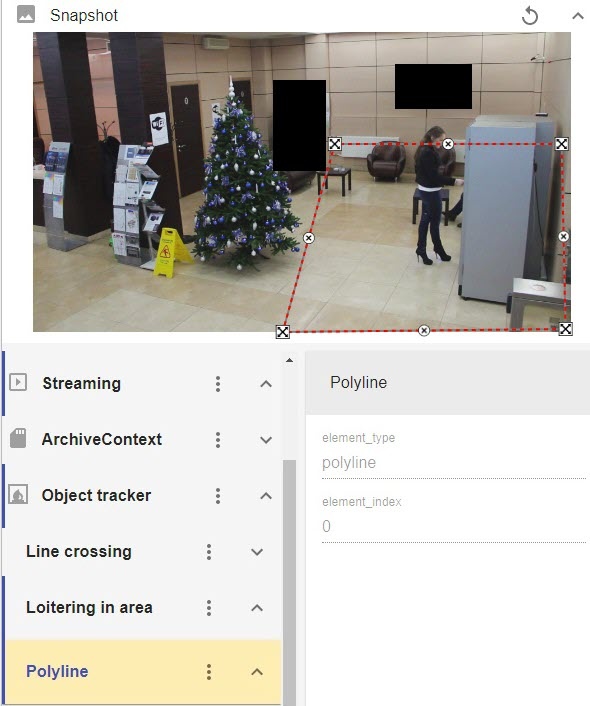

- Select the Polyline object.
- In the FoV, set the nodes of the closed area, in order, inside of which you want detection.
- Click
to save changes.
The detection tool is now configured.
