To configure motion in area detection tool, do as follows:

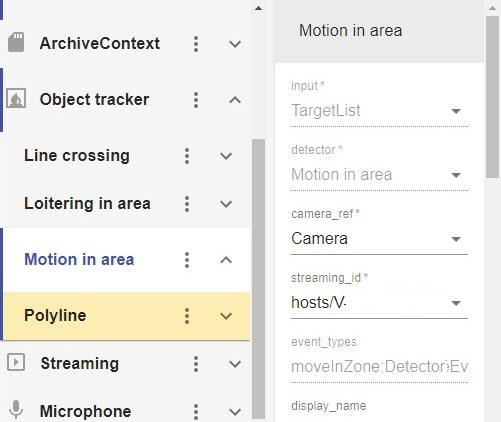

- Select the Motion in area object.
Configure parameters.
Parameter Description Enable Enable/disable detection tool. Maximum object height
Minimum object height
Set the maximum and minimum height of the target object as a percentage of the FoV height. Maximum object width
Minimum object width
Set the maximum and minimum width of the target object as a percentage of the FoV width. Maximum object speed
Minimum object speed
Set the maximum and minimum speed of the target object as a percentage of the frame per second. Object type Select the type of the target object that should trigger the detector.
2 or more human objects moving along each other are treated by the system as a Group. If you select this type of object for tracking, single human motion, even if detected, will not cause alarms.
If you select the Human type, group motion will not cause alarms.

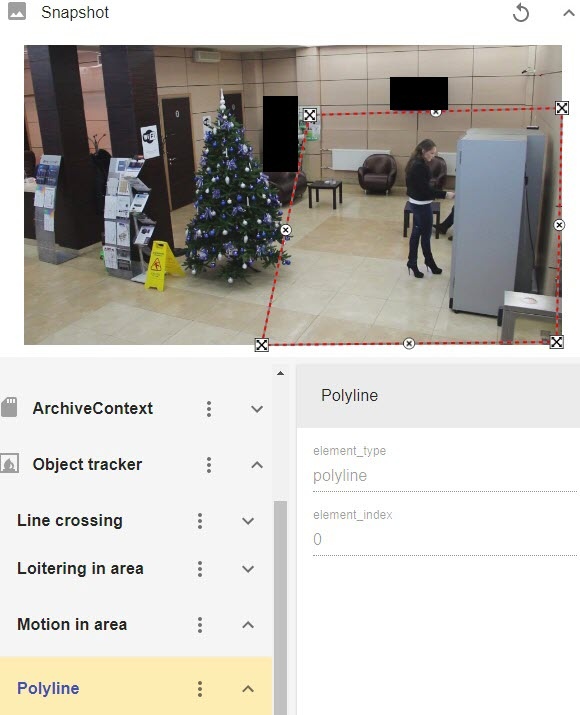

- Select the Polyline object.
- In the FoV, set the nodes of the closed area, in order, inside of which you want detection.
- Click
to save changes.
The detection tool is now configured.
