Configure the Indicator widget as follows:
- Configure common parameters (see Common widget settings in AxxonData).
Select the widgets this widget depends on (1).
Attention!
This is a dependent widget. To create it, it is necessary to first create widgets of the Counter type (see Specifics of Counter widget configuration) — the Indicator widget will display data on their basis.
Enter the initial value of the widget (2).
Select a math operation to be performed with each dependent Counter widget (3−4).
Note

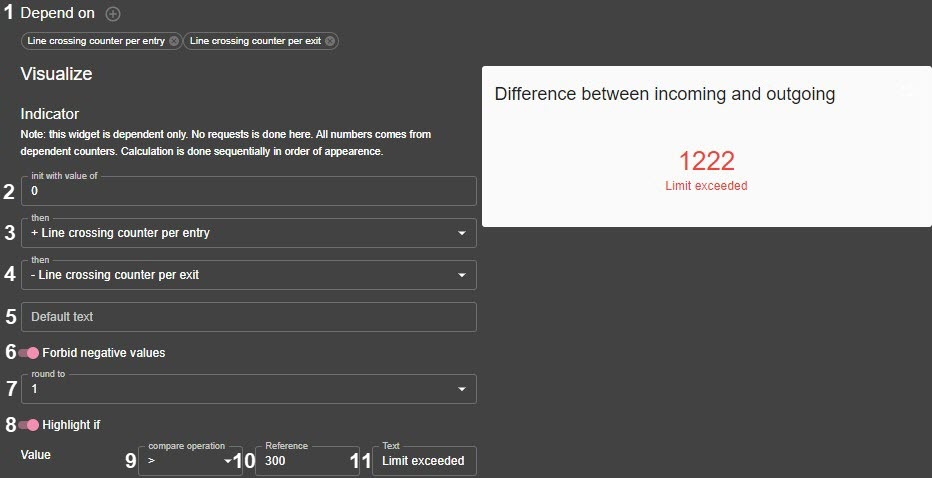

In the example on the image above, the widget counts the number of people: the initial value 0 (2) is added to the number of incoming people (3), and the number of outgoing people is subtracted (4).
- Configure the 5−11 parameters in the same way as in the Counter widget (see Specifics of Counter widget configuration in AxxonData).
- Click Save.
The Indicator widget is configured.
