Search results are displayed in the Face recognition and search interface window after the search is performed (see Starting the face search process).

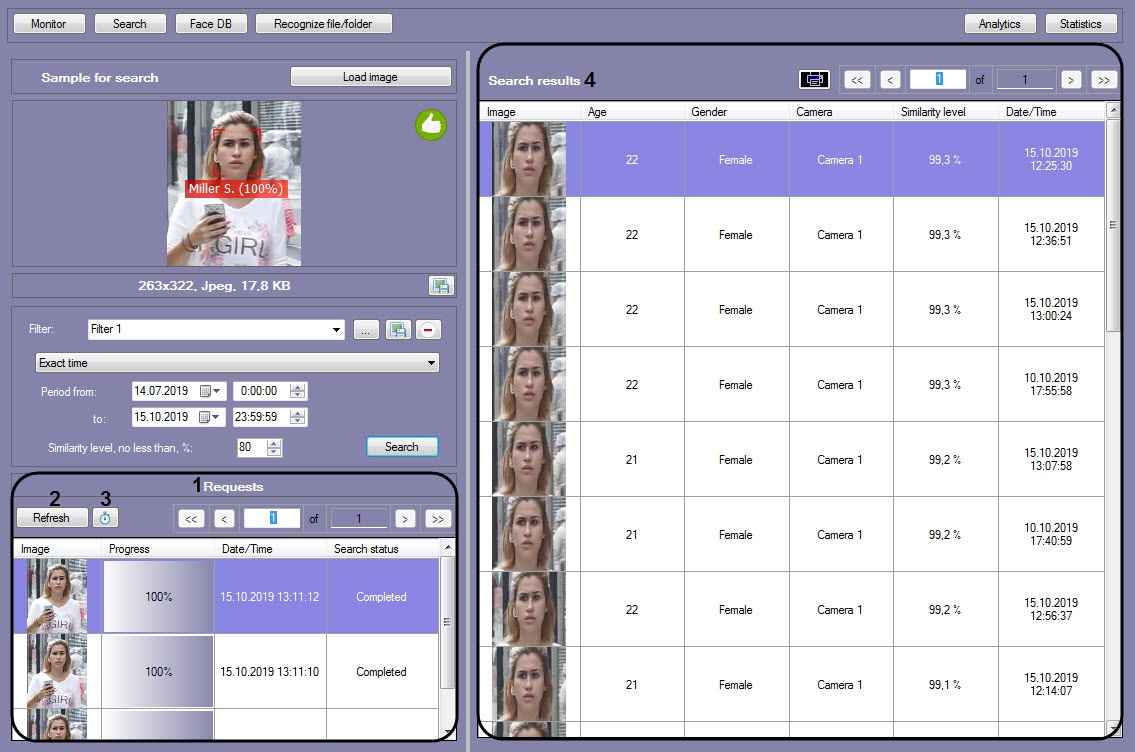

The list of all search requests is displayed in the Requests section (1). The following information is displayed for each record:
| Column name | Description |
|---|---|
| Image | The image for search Note. As you increase the width and height of this column, the image size also increases. The specified column size does not change even if the Automatic column width checkbox is set (see Setting up the parameters for the Face recognition and search interface object) |
| Progress | The progress of the search completion |
| Date/Time | The date and time of the search request completion |
| Search status | The status of the search request |
In order to view the search requests and their results for a certain period of time, click the
button (2) and on the panel that opens specify the beginning and end of the time interval in the Period from: and to: fields, respectively, and click the
button (3).
The search results of the selected request are displayed in the Search results section (4). The following information is displayed for each record:
| Column name | Description |
|---|---|
| Image | The face image from the video record Note. As you increase the width and height of this column, the image size also increases. The specified column size does not change even if the Automatic column width checkbox is set (see Setting up the parameters for the Face recognition and search interface object) Note 2. In case of an emergency shutdown of the FACE-Intellect server, some images of faces may be damaged and displayed as |
| Name of face characteristic | Selected face characteristics (see Configuring the advanced face characteristics). By default, only Age and Gender are displayed. |
| Camera | The camera which is a video record source |
| Similarity level | The similarity level between the reference face image and the captured face from the video record |
| Date/Time | The date and time of the search |
To place a face image from the Search results section in the Sample for search window, double left-click the corresponding search result.

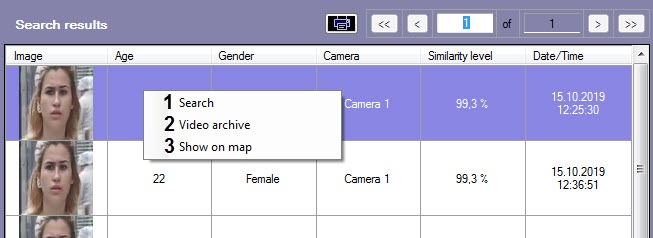

To perform the search using the image from the Search results section, right-click the corresponding image and select Search from the menu (1).
To veiw the video record from moment when the captured face appears, use one fo the following ways:
- Double left-click on the corresponding face search result;
- Right-click the corresponding face search result and select Video archive from the menu (2). After this the window for video record viewing will open (for details, see Working with the archives).
To display the camera that captured the face on the map, right-click the corresponding image and select Show on map from the menu (3).
Note
and
buttons correspondingly. To go to the first page of search results use the
button. To go to the end page of search results click the
button.
