To display a layout, click it with the left mouse button.

If the client is connected to multiple Axxon domains, layouts for the main Axxon domain are listed by default. To view the layouts of other Axxon domains, select the desired domain on the camera search panel.

If another user has shared the layout, you will see the following icon:

Note

If you hover the mouse cursor over such a layout, you will see the name of the user that has shared it.

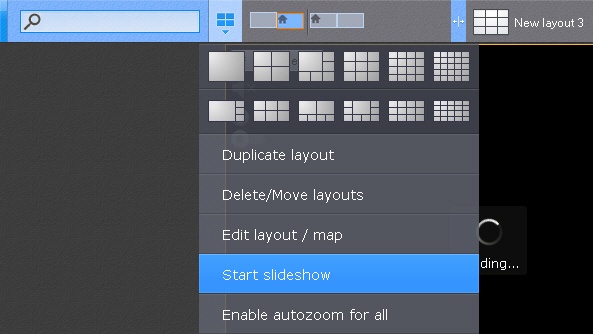

To launch a slideshow, click the  button, and select Start slideshow in the context menu of the layout panel.

Note

If you have only one layout in VMS, you do not have StartSlideshow in the context menu.

This will launch a carousel of all available layouts according to the assigned dwell-time (see Configuring Slideshow parameters).

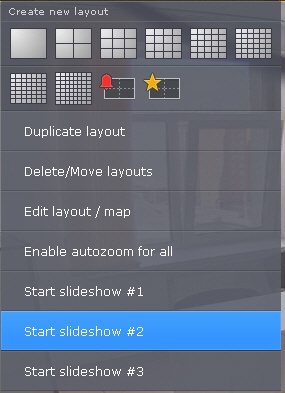

To launch a user-defined slide show, select the required one from the list.

Note

To launch a slide show on a video wall (see Monitor Management), select the required monitor in the Video Wall Management Panel (see Monitor Panel).

To turn off slideshow mode, select Stop slideshow in the context menu of the layouts panel or left-click any viewing tile.
