To connect Web and Mobile Clients to the Server behind NAT, do the following:

  1. On the router, forward the specified port of the Web server (see Configuring the Web-Server). The default port is 80.

    Note

    To access all Servers of the Axxon domain, it is enough to forward any single port of the Web server.

  2. When connecting using a Web browser or Mobile Client, use the Server's public IP address and the forwarded port of the Web server (see Starting the Web-Сlient).

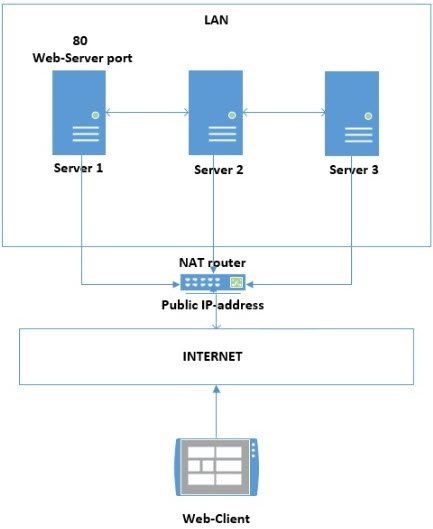

Example:

To connect the Web Client to the Axxon domain in this configuration, do the following:

  1. On the router, forward the port 80 to the internal IP address of Server 1 and port 80.
  2. When starting the Web Client, use the router's public IP address and port 80.
