To create the Graphic report on events, do the following:

  1. Select the Graphic report on events (see Selecting the type of general report).

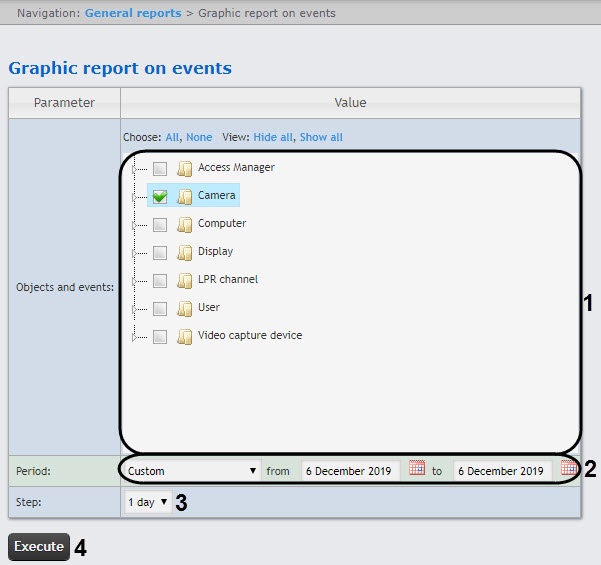

    As a result the dialog box for specifying the report parameters will be displayed.
  2. Set the report parameters in the following way:

    1. In the ObjectEvents field (1) set the checkboxes for the objects and their events the information on which should be displayed in the report.

      Note

      You can select any event by expanding the object type list.

  3. Set the time period in the following way:
    1. From the Period drop-down list (2) select the time period for which the report is to be created.

      1. If the User period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields using the Calendar tool.

        Note

        Click the  button near the corresponding field to use the Calendar tool.

  4. The Step drop-down list (3) indicates the time period during which the data for the report is summarized.
  5. To create a report click Execute (4).

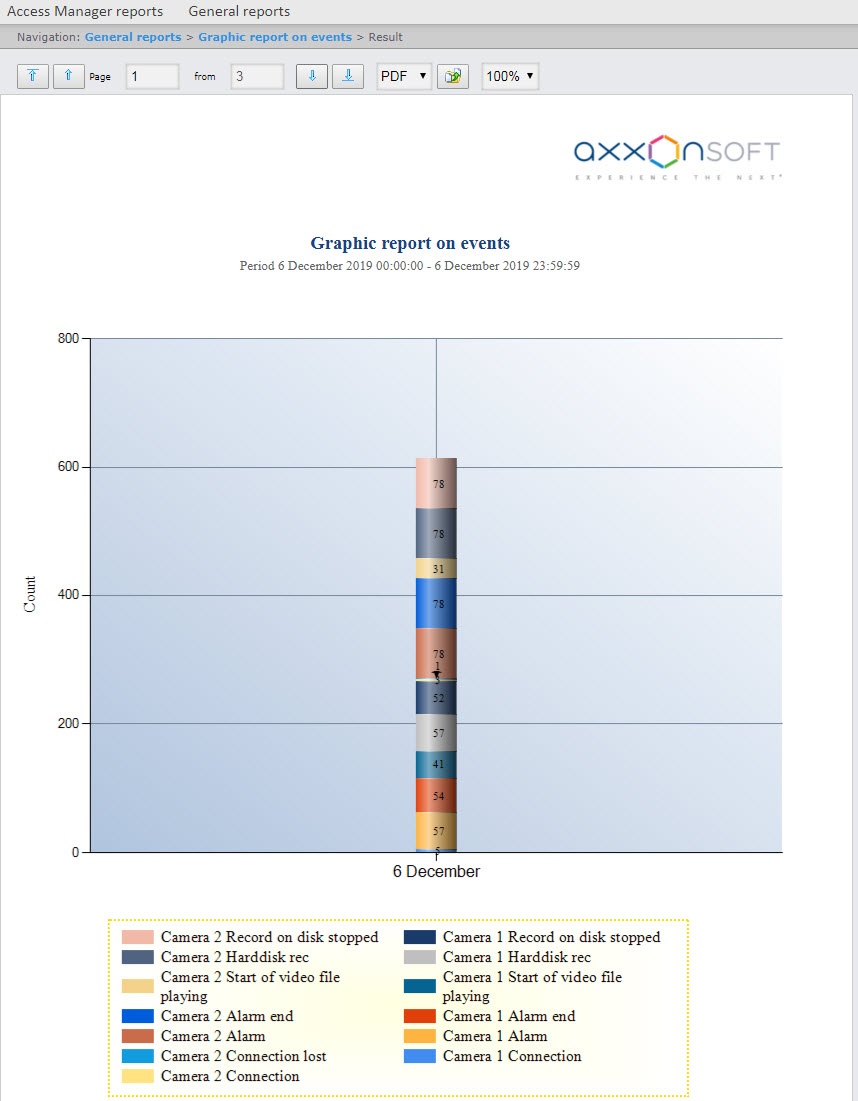

    As a result the report with specified parameters is displayed.

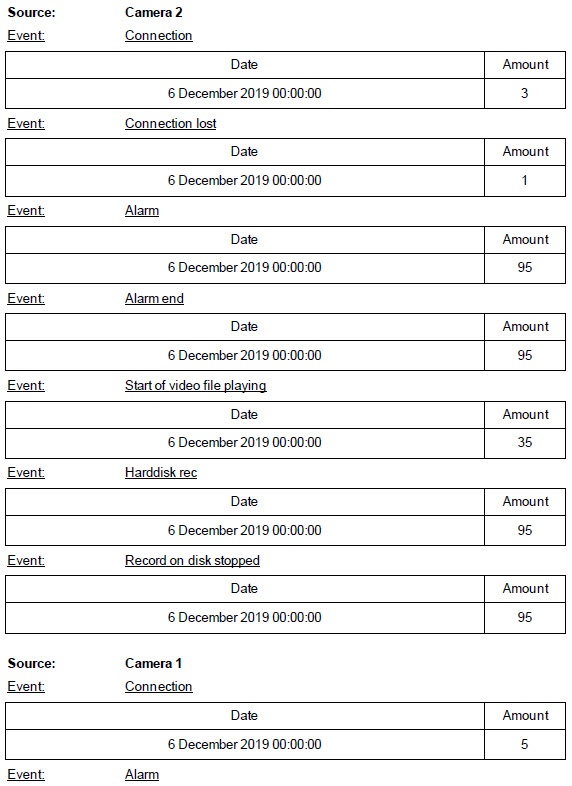

  6. If the report is exported (see Exporting of reports), the report file will also contain the events table, sorted by the event source. This table contains the event name, event date and events number for each event source.
