Attention!

  • In order to generate the Goods weight report, the POS terminal object should be created and configured in POS PSIM (see The POS terminal object setup).
  • The Goods weight report is generated only when using SQL starting from the SQL2017 version. If an earlier version is installed, for example, SQL2014, the Goods weight report will not be generated.

In order to generate the Goods weight report, do the following:

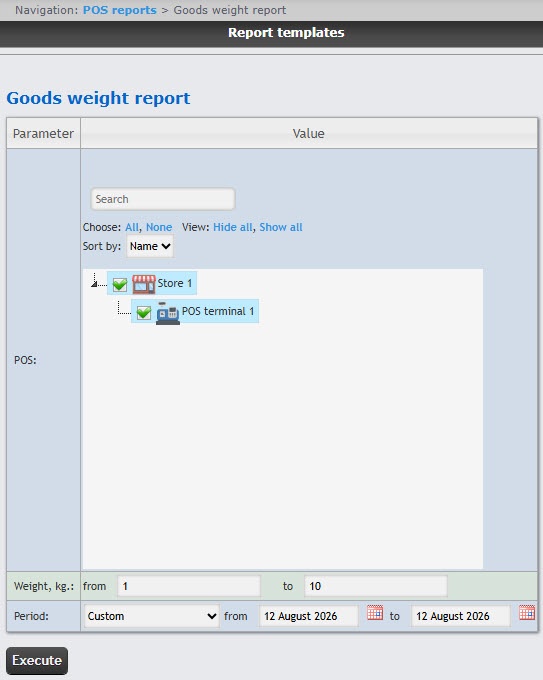

  1. Select the Goods weight report (see Selecting a type of general POS report).

  2. From the POS drop-down list (1), select the POS terminals for which the report will be generated.

    Attention!

    This field is mandatory: the report will not be generated if no value is selected. If you try to generate a report, a warning message will alert you that you should select at least one value from the list.

  3. To use the search when selecting the POS terminals, in the search field (2) start entering the POS terminal name. The search works starting from the first character. The results will be highlighted in a different color. Click All to select all found/available POS terminals. Click None to deselect. Click Show all to expand the POS terminals structure. Click Hide all to hide the POS terminals structure.
  4. In the Weight, kg. from (3) and to fields (4), enter the minimum and maximum weight of the goods in kilograms.

  5. From the Period drop-down list (5) select the time period for which the report should be created. If the Custom period is selected, enter the date of start and end periods in the from and to fields using the Calendar tool. Click the button near the corresponding field to use the Calendar tool.

  6. Click the Execute button.

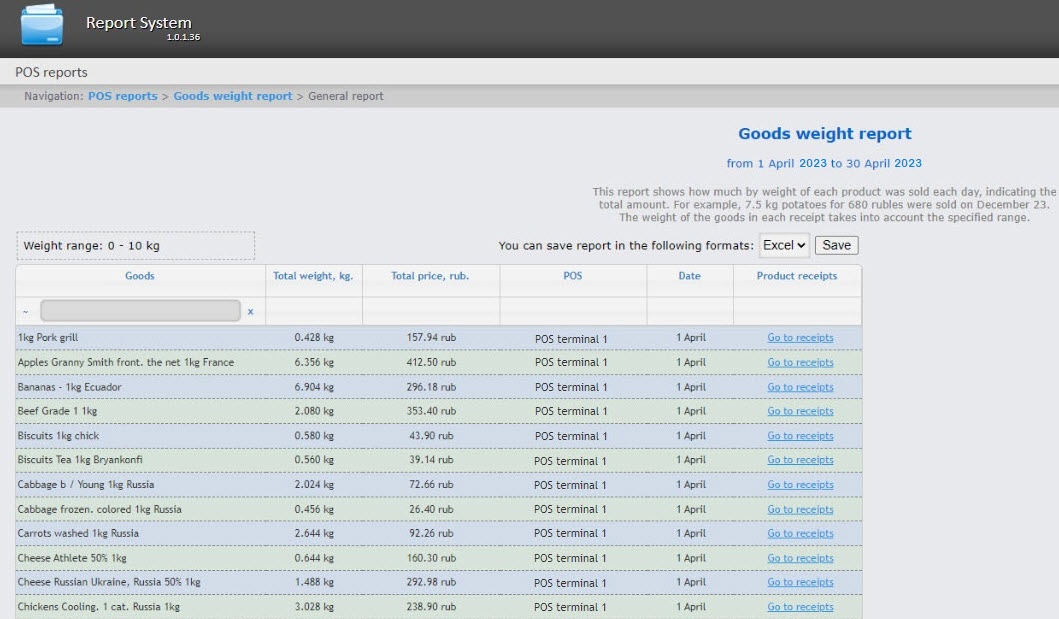

As a result, a summary table of the events by the goods weight will be displayed according to the specified parameters. To go to the detailed report on the specified goods, click on the Go to receipts link of this goods.

To save the Goods weight summary report in .xls format, click the Save button.

The Goods weight report generation is complete.
