The Report by road congestion allows you to get statistical information about traffic congestion.

Note

The Report by road congestion is related to the Intellivision vehicle detection and Vehicle Processor modules (it is necessary to create and configure the corresponding objects in Axxon PSIM).

To get statistics on road congestion, do the following:

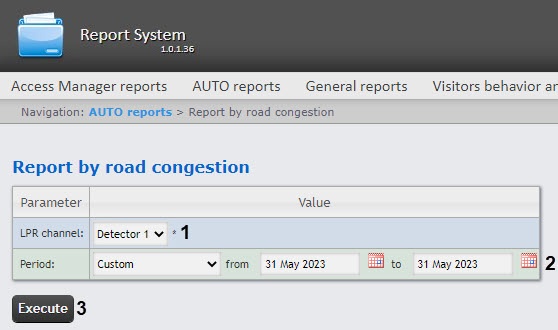

  1. Select the Report by road congestion type (see Selecting the type of AUTO report). As a result, the dialog box for specifying the report parameters will be displayed.
  2. From the LPR channel drop-down list (1), select the Detector object which data should be used to build the report.

  3. From the Period drop-down list (2), select the time interval for which the report should be built.

    Note

    If the Custom period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields using the Calendar tool. Click the  button near the corresponding field to use the Calendar tool.

  4. Click Execute (3) to run the report. As a result the report in the selected form is displayed
    The Data source table contains the following information:

    Column nameDescription
    Types of vehiclesName of vehicle types that correspond to the configured vehicle type classification on the settings panel of the Vehicle Processor object
    General number of vehicles The total number of recorded vehicles of all vehicle types, and separate number of recorded vehicles divided by each vehicle type
    Average speed, km/hThe total average speed of the vehicle in km/h for all vehicle types, and separate average speed divided by each vehicle type
    Traffic density, % Traffic density in percent
    Lane occupancy, %Lane occupancy in percent

    The Average speed, km/h graph displays the average speed for each type of vehicle.
    The Number of vehicles graph displays the number of vehicles of each type.
    This report can be saved to a file in the following formats:

    • PDF;
    • Excel;
    • CSV.

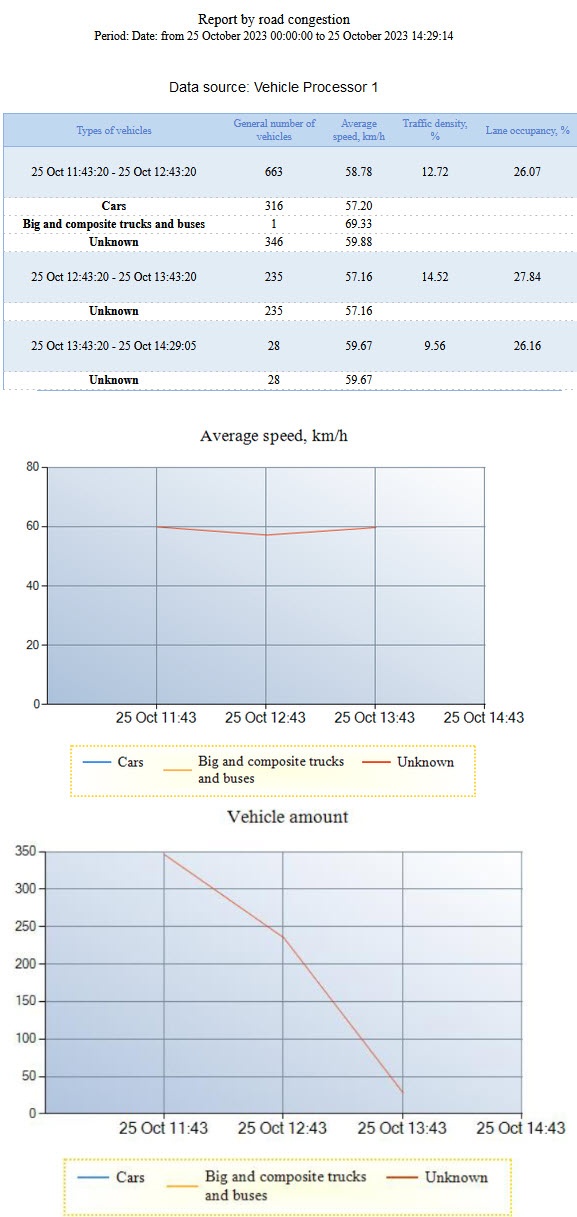

Example of the Report by road congestion:
